The latest designed 6-layer gold immersion main PCB circuit adopts high-precision, ultra-low noise TCXO temperature compensated crystal oscillator doubling the high precision LDO power supply processing on the UDP800. Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors further improves audio and video quality.Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring,equipped with high precision, ultra-low phase noise TCXO temperature compensated crystal, oscillator, numerous ELNA, NCC audio capacitors pairing with Red WIMA, ELNA SILMIC II capacitors, and independent high-power linear power supply module equipped with Hi-Fi XLR balanced terminals and gold plated RCA outputs providing for better Audiophile sound quality.
Key Features:
• Dolby Vision, HDR10+, HDR10
• Sabre ES9038PRO DAC for stereo outputs
• Sabre ES9028PRO DAC for multichannel outputs
• XMOS USB Audio support
• 4K UHD Blu-ray player
• Also plays BR, 3D BR, DVD, DVD-Audio, CD, SACD etc
• Supports HDR formats – Dolby Vision, HDR10+, HDR10
• Supports Dolby Atmos, DTS-X, Dolby TrueHD and DTS-HD Master Audio
• Quad-core MediaTek MT8581 processor chip
• Sabre ES9038PRO DAC for balanced and unbalanced stereo audio outputs
• Multichannel 7.1 analogue audio RCA outputs via Sabre ES9028PRO DAC
• USB Type B input for hi-res 192kHz playback via computer, NAS HDDs up to 16TBs
• Supports DLNA and SMB protocols
• MKV, AVI, MP4, WAV, FLAC, APE, DSD file support
• 6-layer gold immersion main PCB circuit board
• Stereo XLR & RCA outputs for stereo audio
• Dual power supply
• Two-stage filter design with Japanese Rubycon electrolytic capacitors
• Independently shielded power supply and CD mechanism

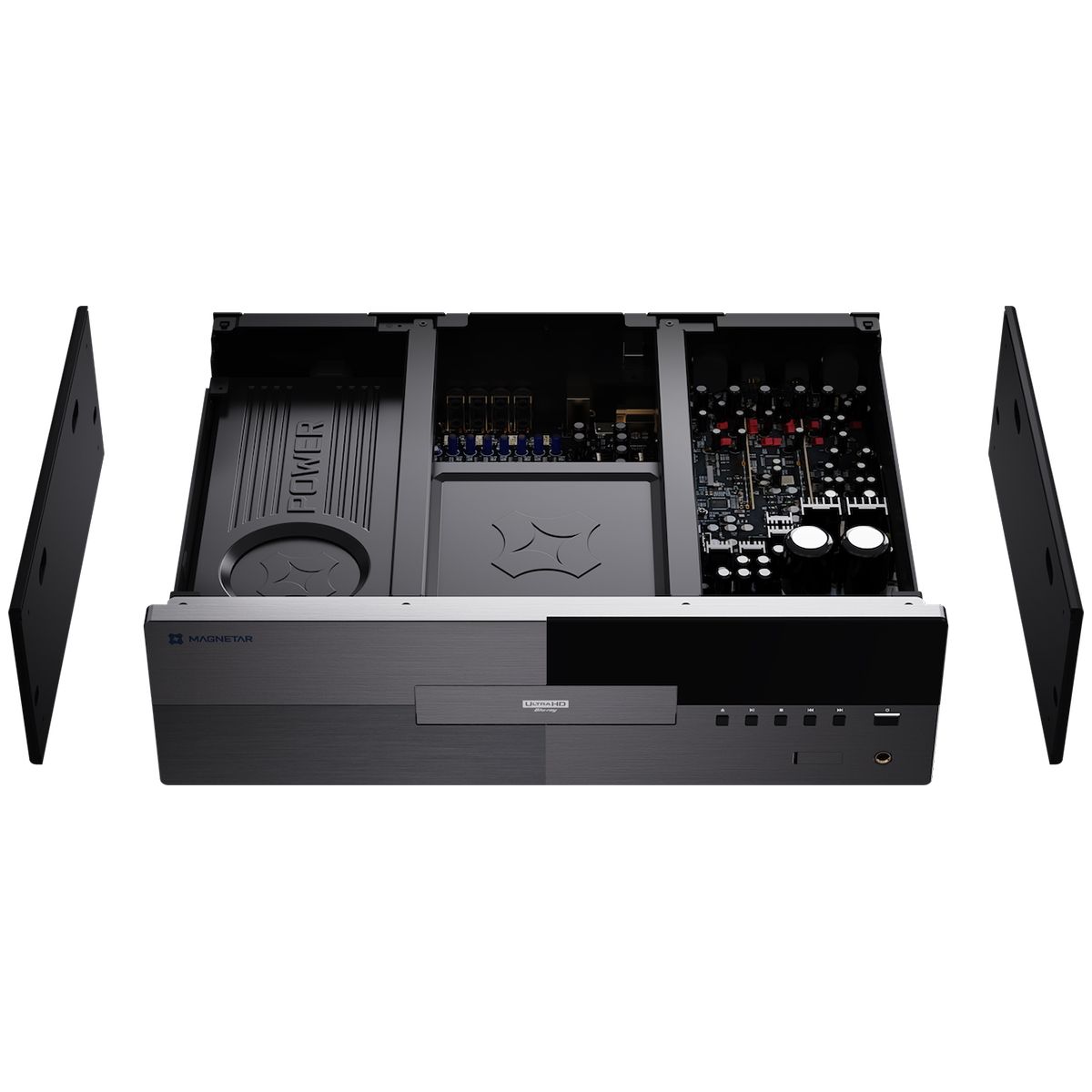

• All-aluminum alloy body and a reinforced double-layer chassis structure
