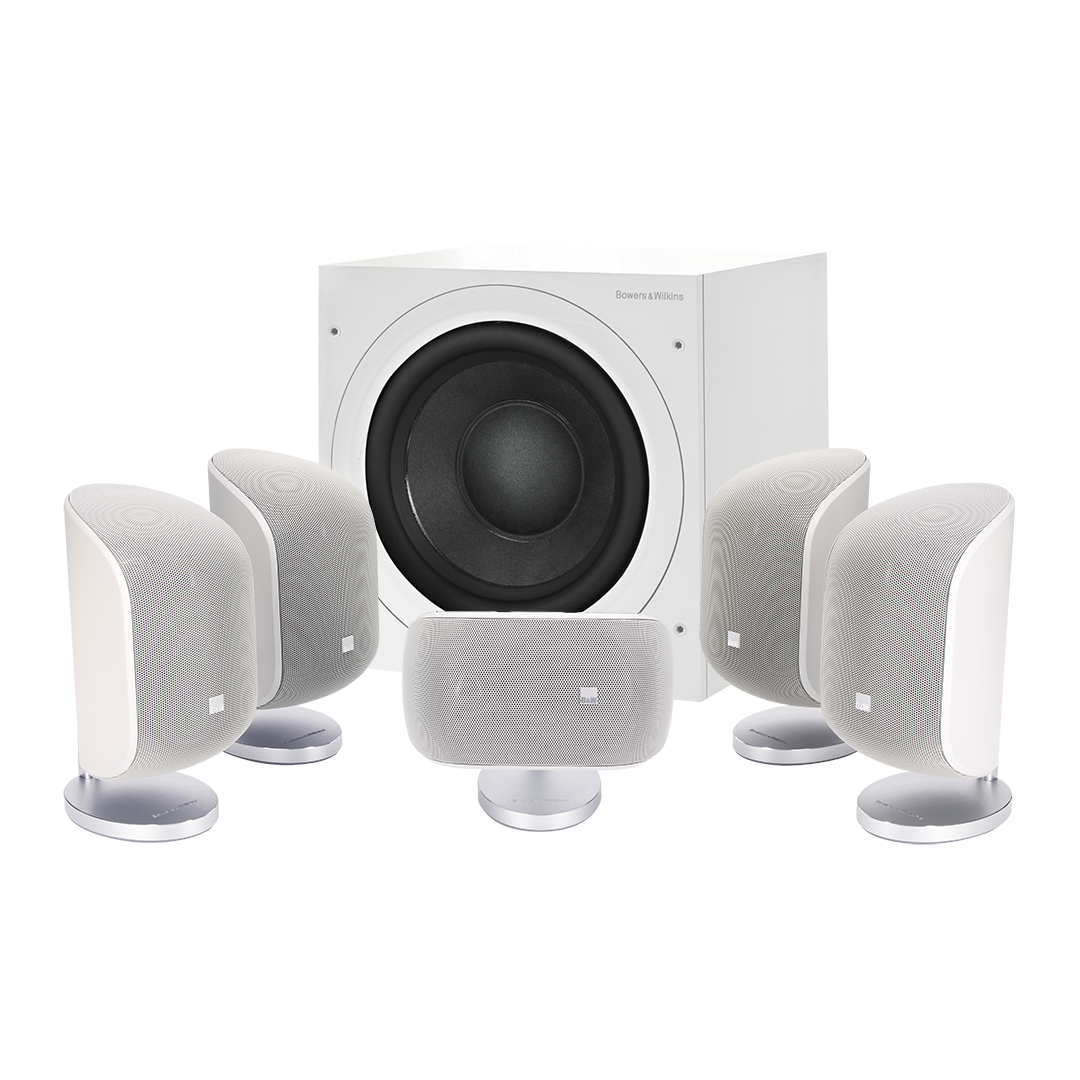

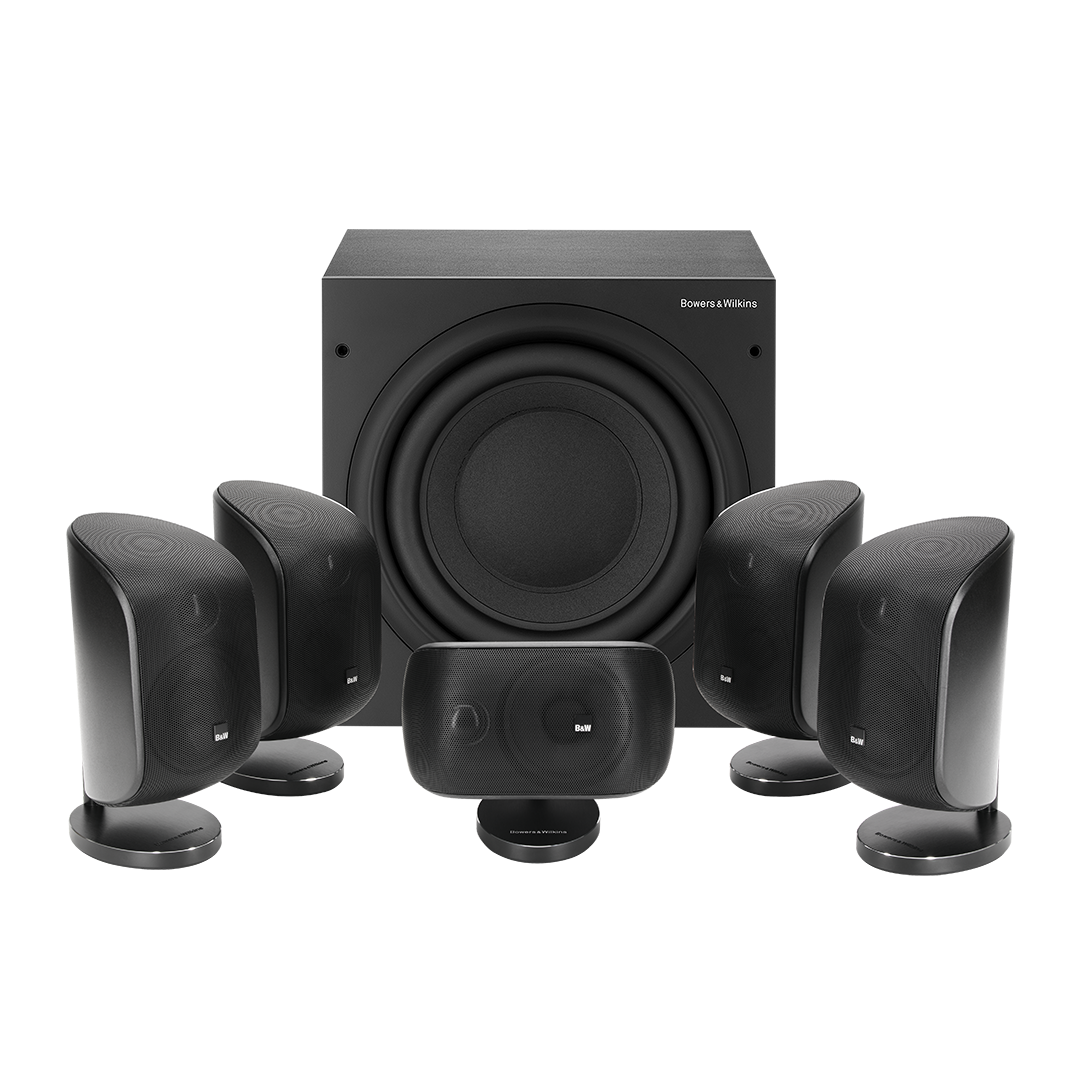

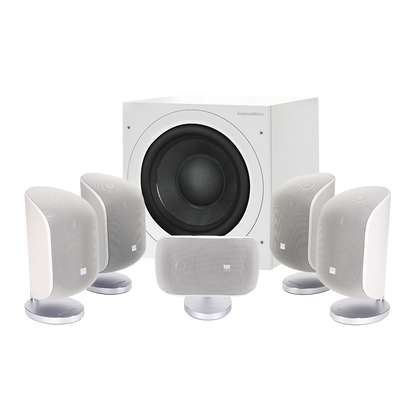

Bowers & Wilkins MT-60D Home Cinema Speaker System

Home Cinema System

Combine our clever little M-1 speakers with the explosive power of the PV1D subwoofer, and you have our flagship MT-60D Mini Theatre system. Don't let the compact size fool you – it means business!

Setting new standards for compact home cinema

Forming the basis of a completely revised Mini Theatre concept, the new M-1 combines a cleaner aesthetic with dramatically improved performance. Combined with the PV1D subwoofer to create a home theatre experience with superb integration and impressive power for such a discreet system. Plus, its more extended bass response allows M-1 to be used on its own for two-channel applications. Mount the speaker as shown on a table or shelf. Alternatively, a bracket is included for wall mounting and a floor stand is available as an optional extra.

Technical Specifications:

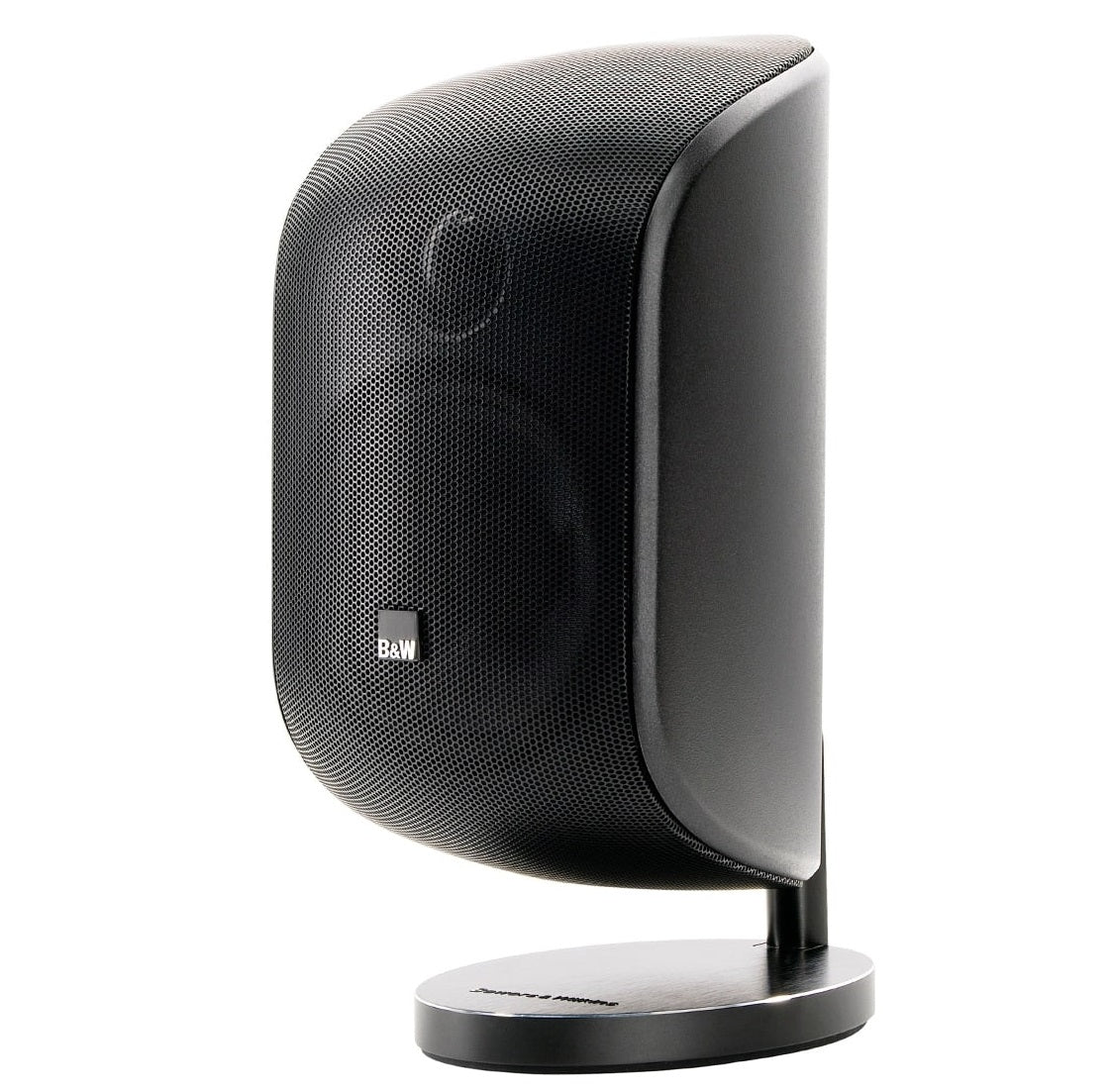

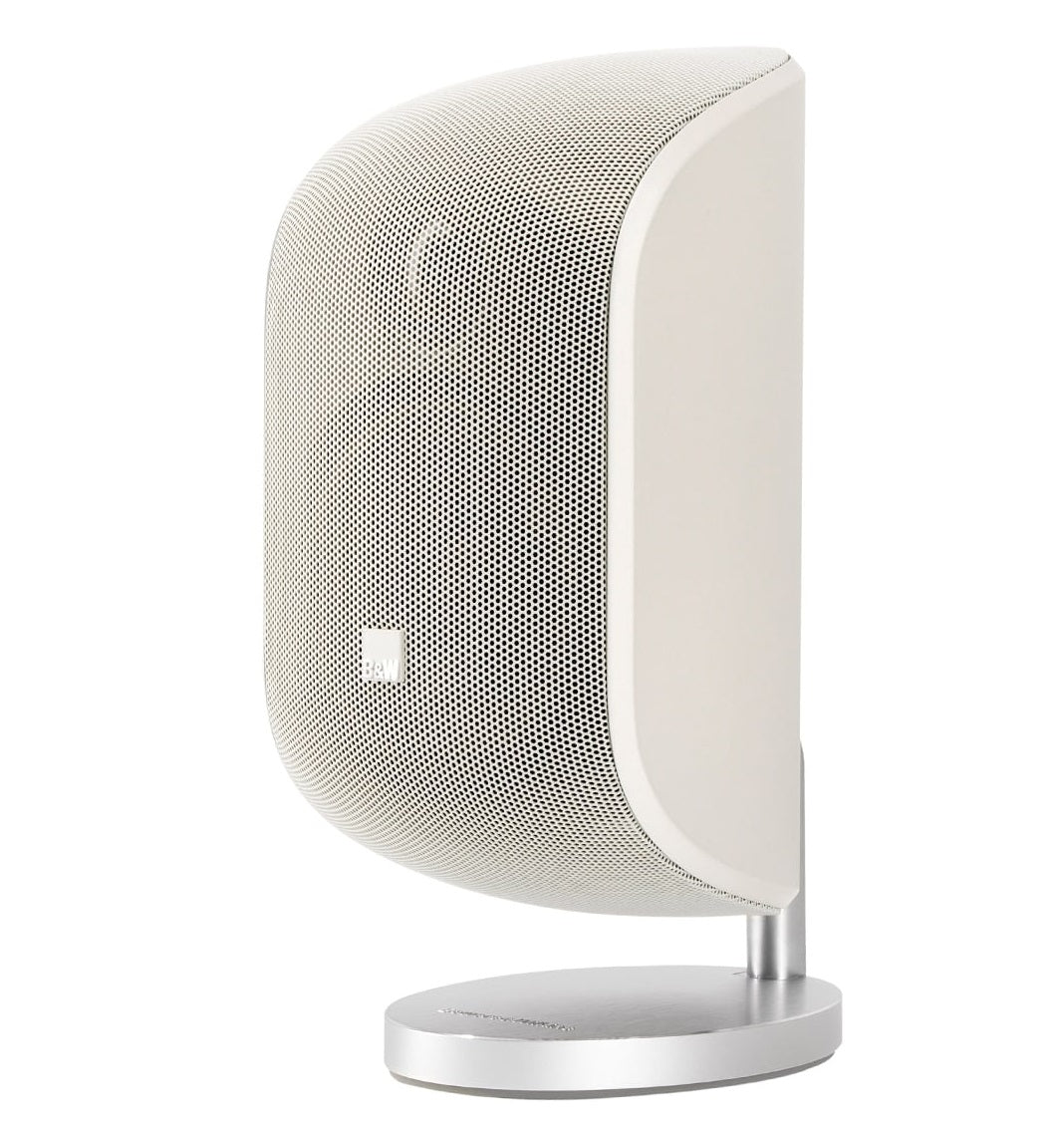

M1 satellite speakers

Technical features: Nautilus™ tube loaded tweeter with aluminium dome & Woven glass fibre cone bass/midrange

Description: 2-way vented-box system

Drive Units: 1x 1” aluminium dome high-frequency, 1x 4” woven glass fibre cone bass/midrange

Frequency Response: 64Hz – 23kHz ±3dB on reference axis

Sensitivity: 85dB spl (2.83V, 1m)

Nominal Impedance: 8Ω (minimum 4Ω)

Recommended amplifier power: 20W – 100W into 8Ω on unclipped programme

Dimensions: Height: 248mm x Width: 114mm x Depth: 162mm (mounted on table stand)

Weight: 2.3kg

Finishes: Cabinet matt black or matt white, perforated steel grille

PV1D Powered Subwoofer

Technical features: Paper-Kevlar®/aluminium composite diaphragm drivers, Balanced drive, Digital Signal Processing 400W Class-D amplifier

Description: Active, balanced-drive closed-box subwoofer system

Drive Units: 2x 8” Paper-Kevlar®/aluminium cone long-throw

Frequency range*: -6dB at 6.5Hz and 570Hz

Frequency Response*: 7.5Hz - 450Hz ±3dB on reference axis

Power Output: 400 watt

Functions: 5 presets Input sensitivity (analogue) Gain (digital) Low-pass filter: frequency, slope, phase Auto on/standby 12V trigger on/standby 12V trigger preset switching RS-232 automation control

Inputs: Stereo line in (2x RCA/Phono/Cinch) Speaker level in (5m cable supplied)

Dimensions: Height: 3428mm x Width: 270mm x Depth: 358mm

Weight: 18.7kg

Finishes: matt black or matt white

* Bass extension varies with output level due to dynamic equalisation.
