Description

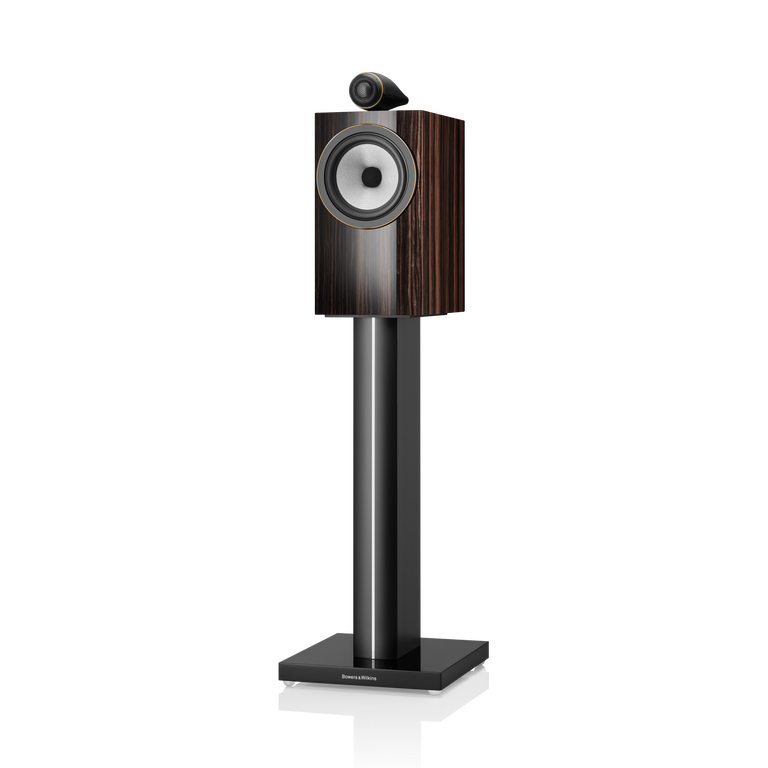

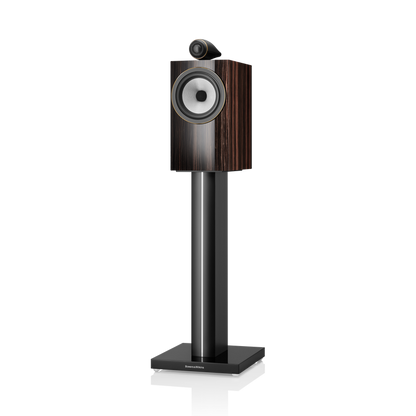

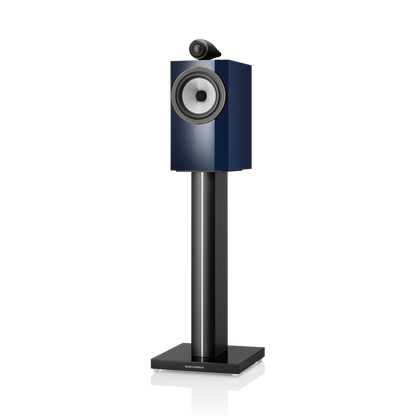

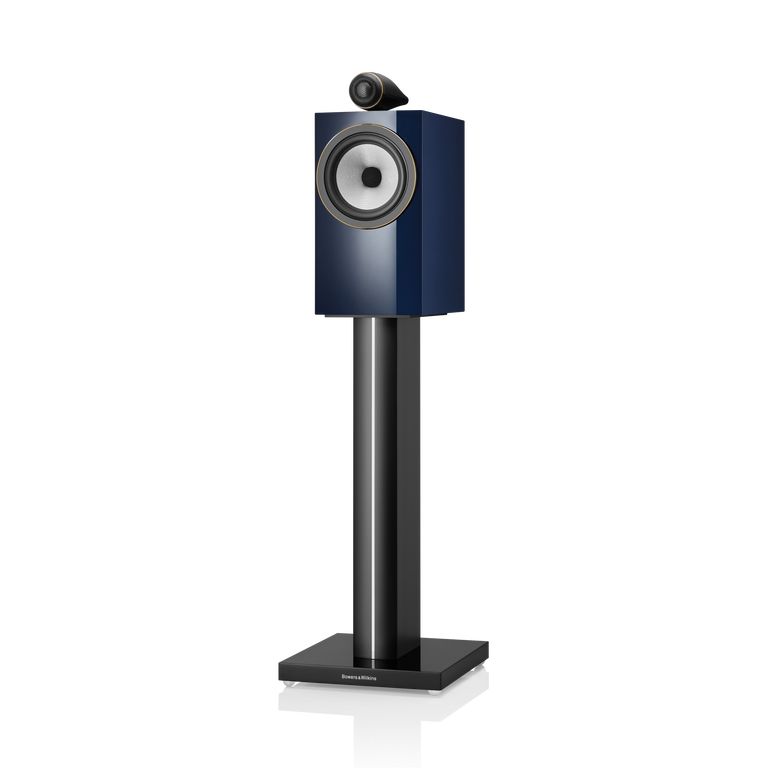

The 705 S3 Signature is expertly engineered to deliver sonic brilliance in a more compact form.
* Stand(s) not included.
Crafted. Honed. Perfected.
Featuring optimised technology from our most advanced loudspeakers, as well as our proprietary Continuum mid-bass drive unit and Tweeter-on-Top, the 705 S3 Signature utilises an upgraded mid-bass motor system, improved capacitors, revised speaker terminals, plus a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
Technical Details
-
Drive units 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5in) Continuum cone bass / midrange
-
Frequency range -6dB 45Hz - 33kHz
-
Frequency response 50Hz - 28kHz ±3dB
-
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
-
Nominal impedance 8Ω (minimum 3.7Ω)
-
Recommended amplifier power 30W - 120W into 8Ω on unclipped programme
-
Sensitivity 88dB spl (2.83Vrms, 1m)
-
Technical features Decoupled Carbon Dome tweeter

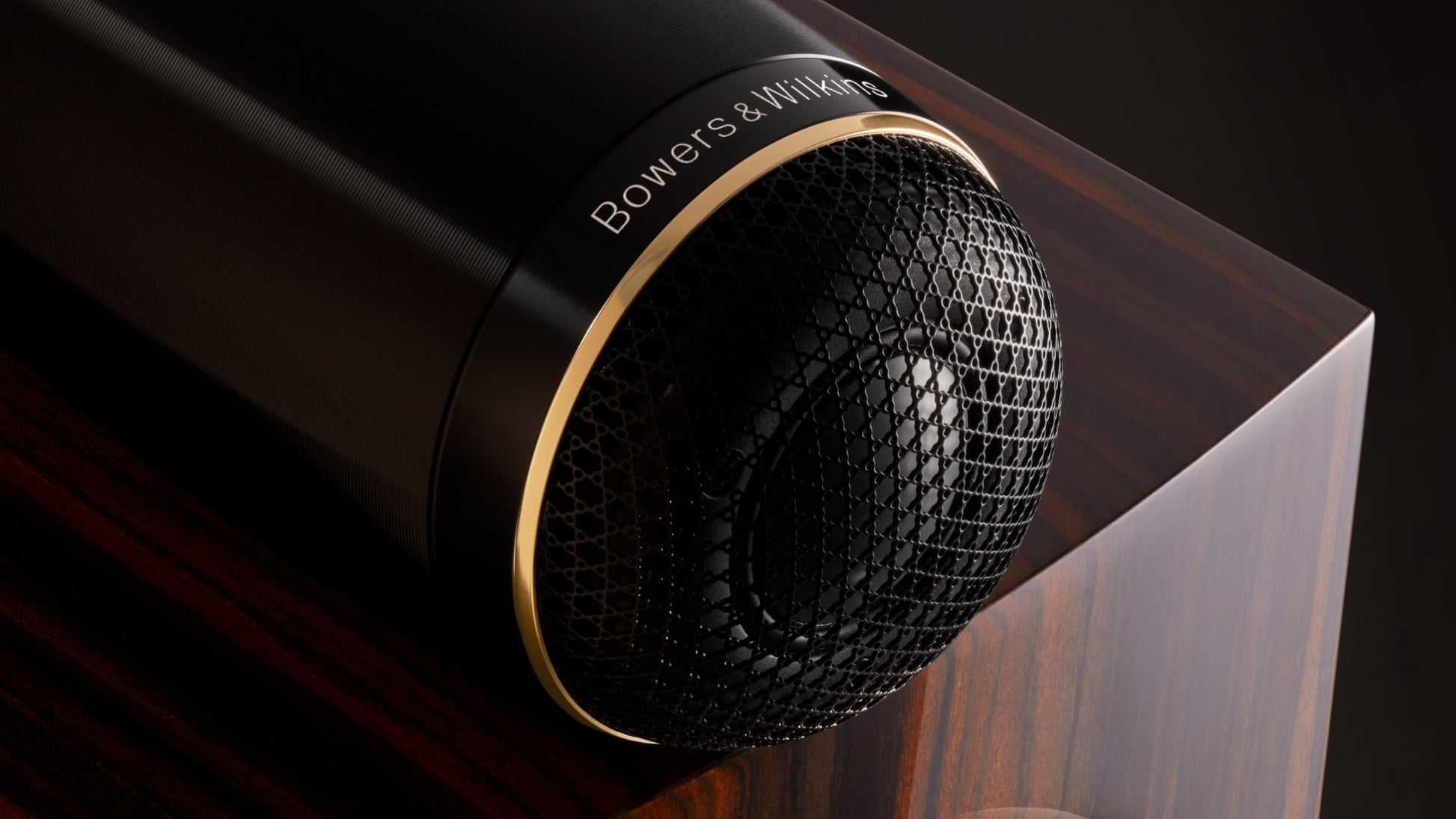

Solid Body Tweeter-on-Top
Continuum™ cone bass / midrange
Flowport™
-
Description 2-way vented-box system
-
Max recommended cable impedance 0.1Ω
Size & weight
-
Net weight10.85kg
-
Dimensions Height: 345mm cabinet only
413mm including tweeter
Width: 192mm cabinet only
Depth: 297mm cabinet only
337mm including grille and terminals
