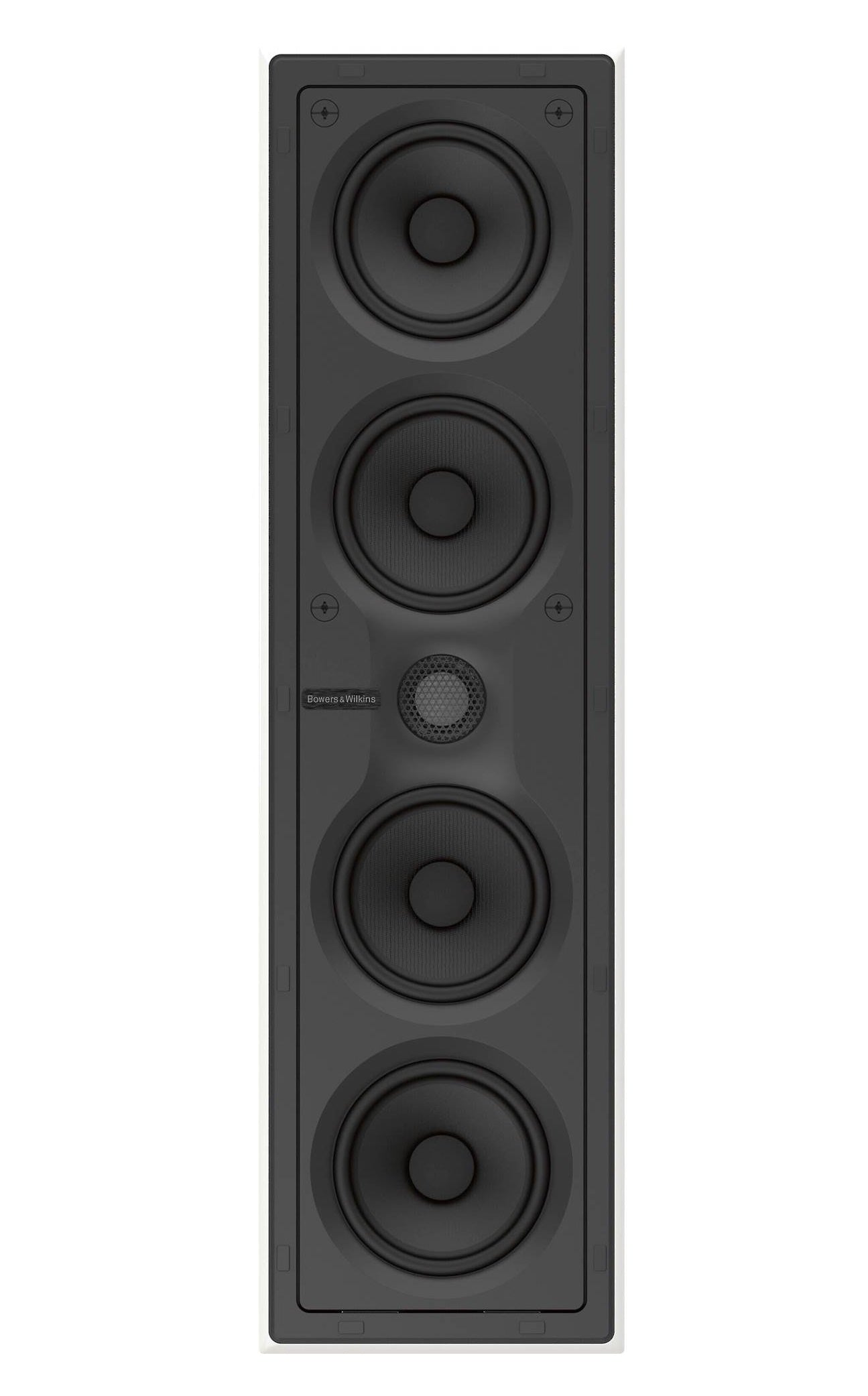

Designed for wall-mounted left, centre and right speaker positions in a discreet home

cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen,
ensuring crystal-clear dialogue and dramatic special effects. Thanks to Bowers & Wilkins

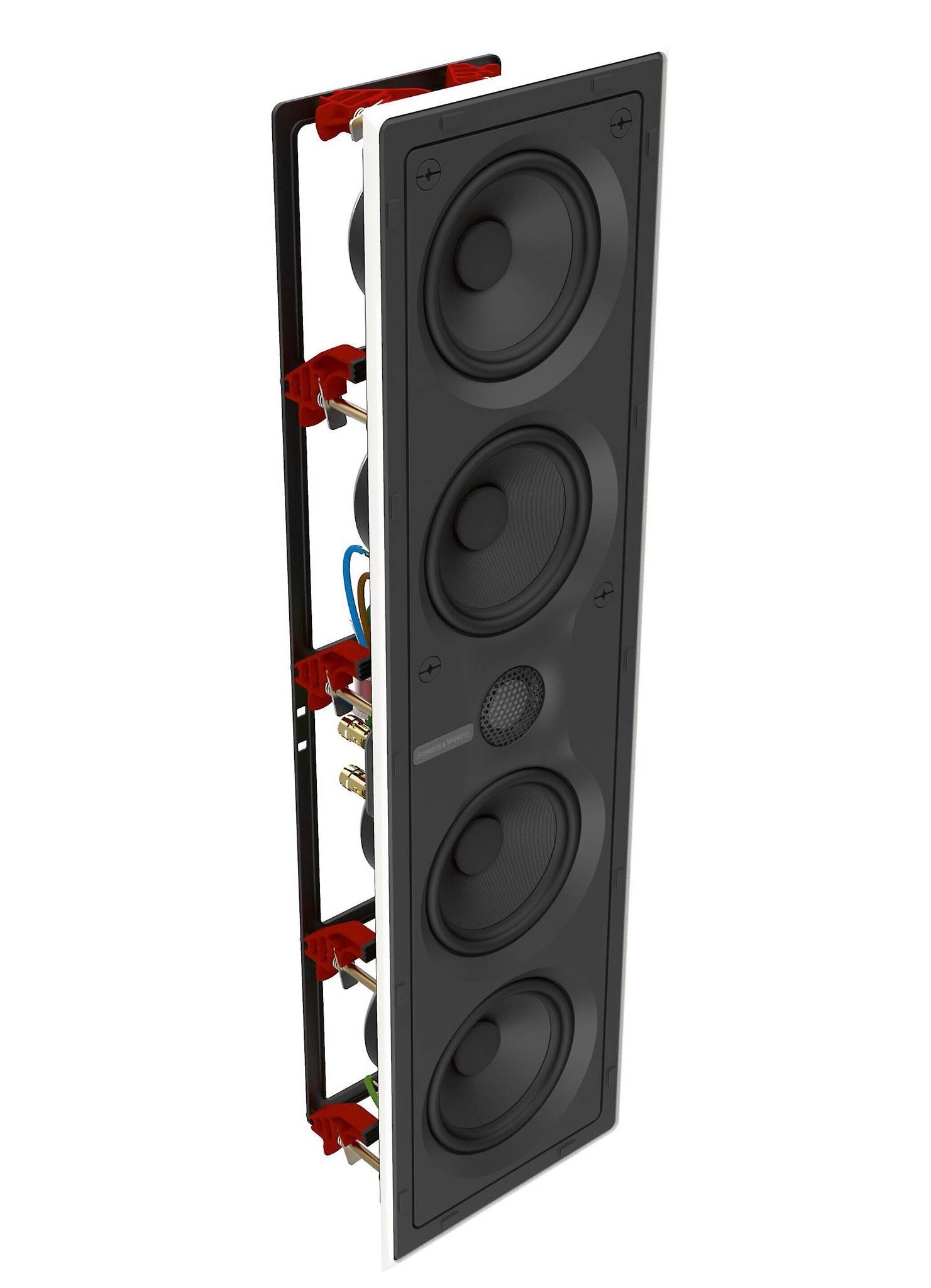

unique QuickDogs™ fixing method, installation is simple, requiring no tools. Its 2.5-way
configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone
midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

Technical Specifications
Technical features: Carbon Dome tweeter, Continuum midrange, Aramid Fibre/Paper bass cones
Description: 2½-way in-wall system
Drive units: 1x ø25mm (1 in) Carbon Dome high-frequency
2x ø100mm (4 in) Continuum cone mid/bass
2x ø100mm (4 in) Aramid Fibre/Paper profile bass
Frequency range: (-6dB) -6dB at 43Hz - 33kHz
Frequency Response: -3dB 45Hz - 28kHz ±3dB
Sensitivity 86dB spl (2.83Vrms, 1m)
Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance: 8Ω (minimum 4.9Ω)
Recommended amplifier power: 25W - 150W into 8Ω on unclipped programme
Frame height: 625mm (24.6in)
Frame width: 175mm (6.9in)
Depth (behind surface): 92.5mm (3.64in)
Cut-out height: 597mm (23.5in)
Cut-out width: 147mm (5.8in)
Protrusion: 8mm (0.3in)
Net weight: 6.2kg (13.73 lb)

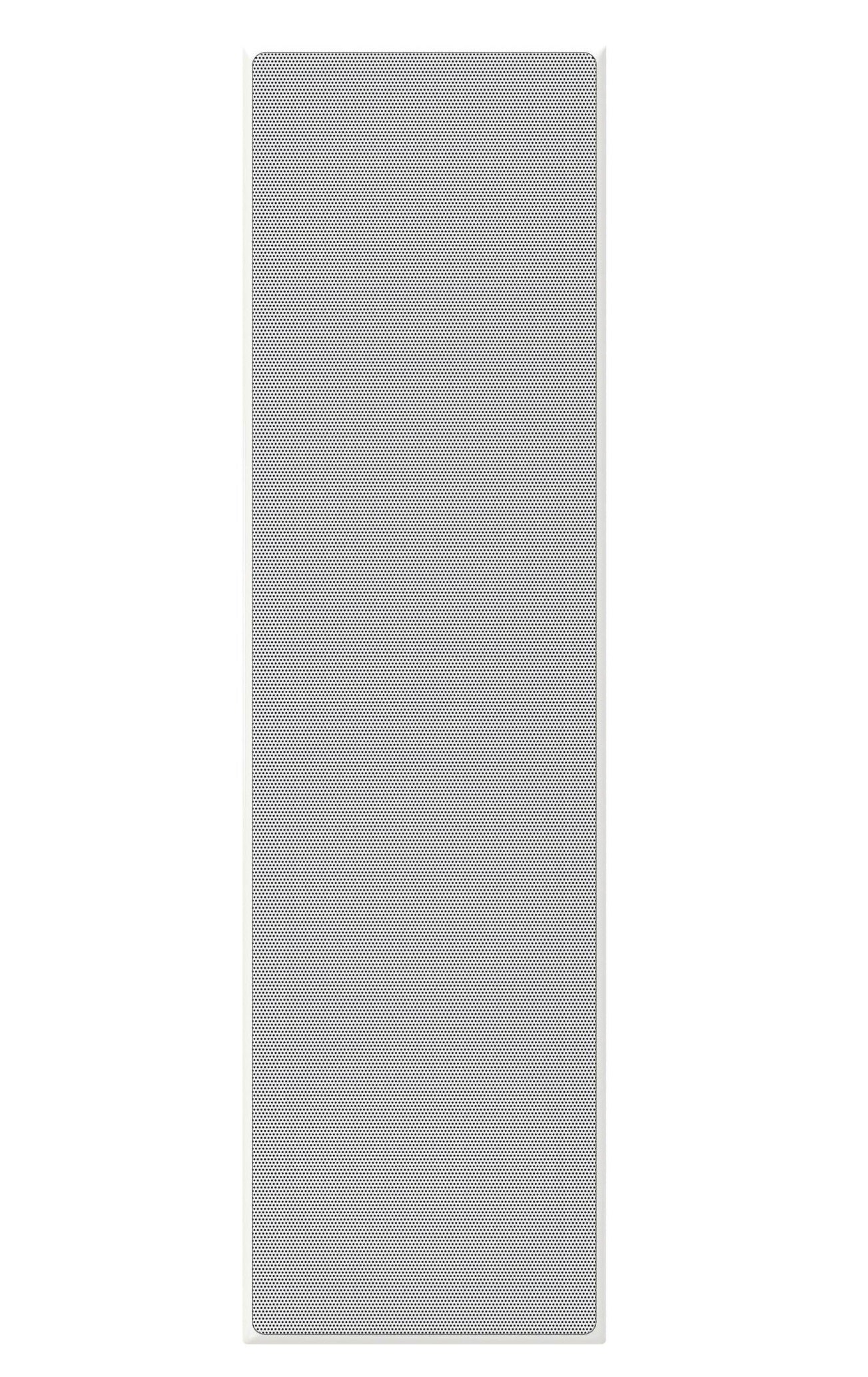

Finishes Grille: White
