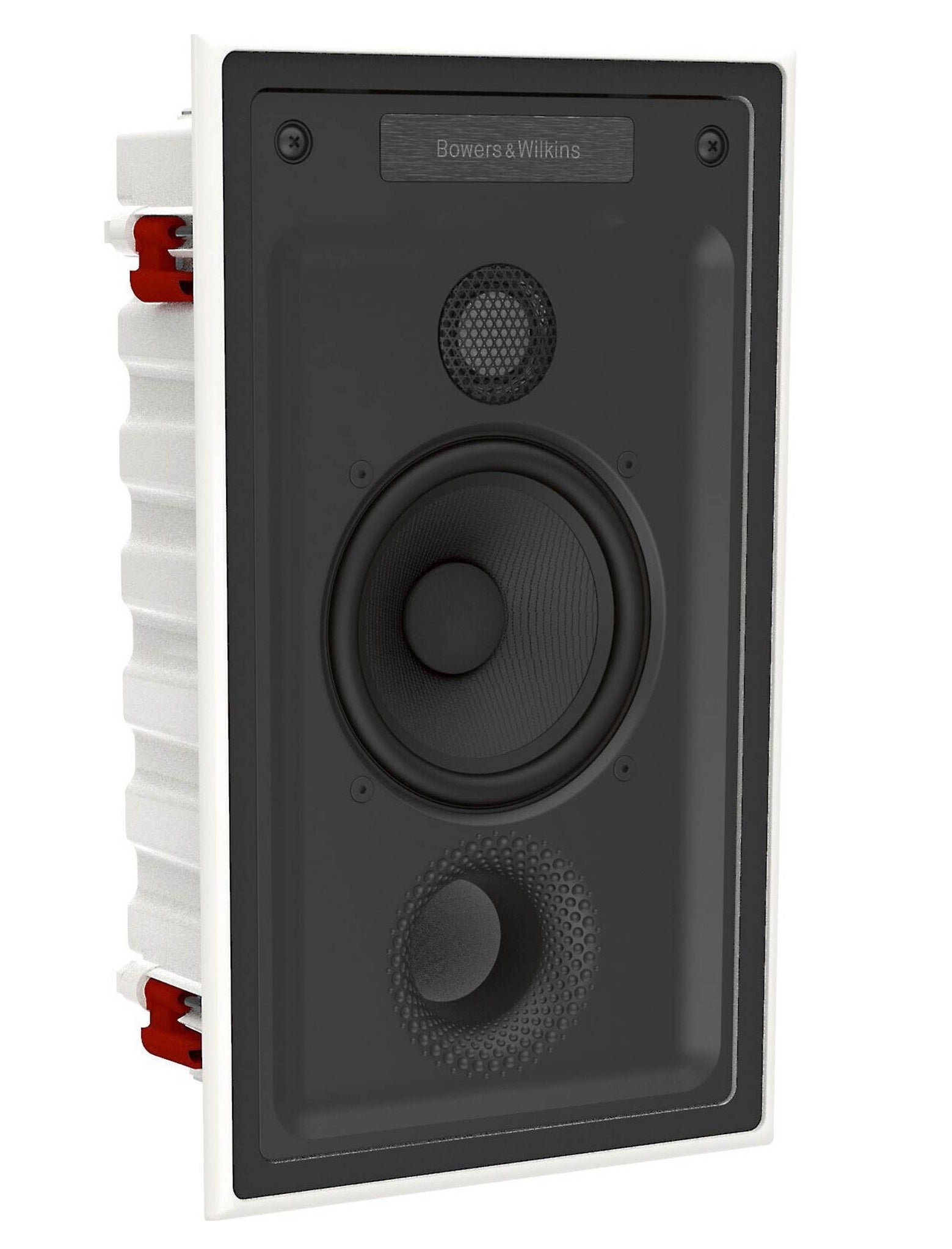

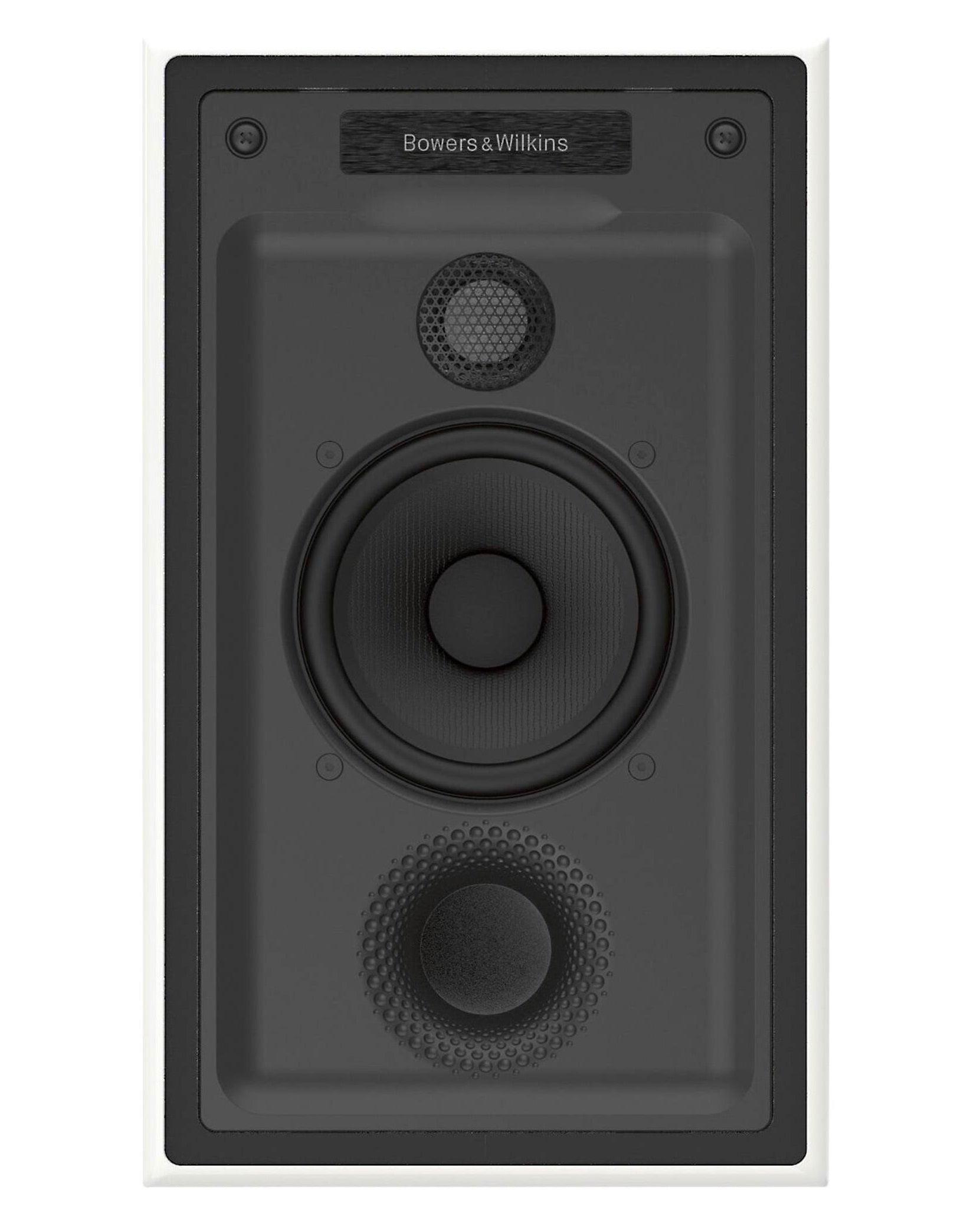

Bowers & Wilkins CWM7.5 S2 in-wall speaker (each)

Description

See nothing, hear everything

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it
houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon
Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response
from a relatively small footprint. It has a critically formed baffle constructed from glass

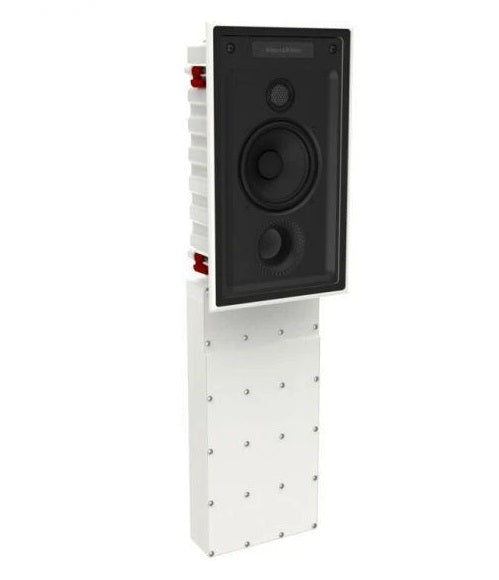

reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus
optimum performance. It’s an outstanding performer when used in stereo or multi-room
installations, and is equally at home as the rear speaker in a larger theatre application.

Technical Specifications

Description: 2-way in-wall system
Tweeter: 1x ø25mm (1 in) Carbon Dome high-frequency
Mid/Bass: 1x ø130mm (5 in) Continuum cone driver
Frequency range: (-6dB) -6dB at 43Hz and 33kHz
Frequency Response: -3dB 45Hz - 28kHz ±3dB
Sensitivity: 86dB spl (2.83Vrms, 1m)
Nominal impedance: 8Ω (minimum 3.8Ω)
Recommended amplifier power: 25W - 150W into 8Ω on unclipped programme
Frame height: 356mm
Frame width: 212mm
Depth (behind surface): 102mm
Cut-out height: 331mm
Cut-out width: 187mm
Cut-out height w/PMK: 336mm
Cut-out width w/PMK: 192mm
Reservoir box height: 385mm
Reservoir box width: 181mm
Protrusion: 8mm
Net weight: 3.8kg
Back box: White

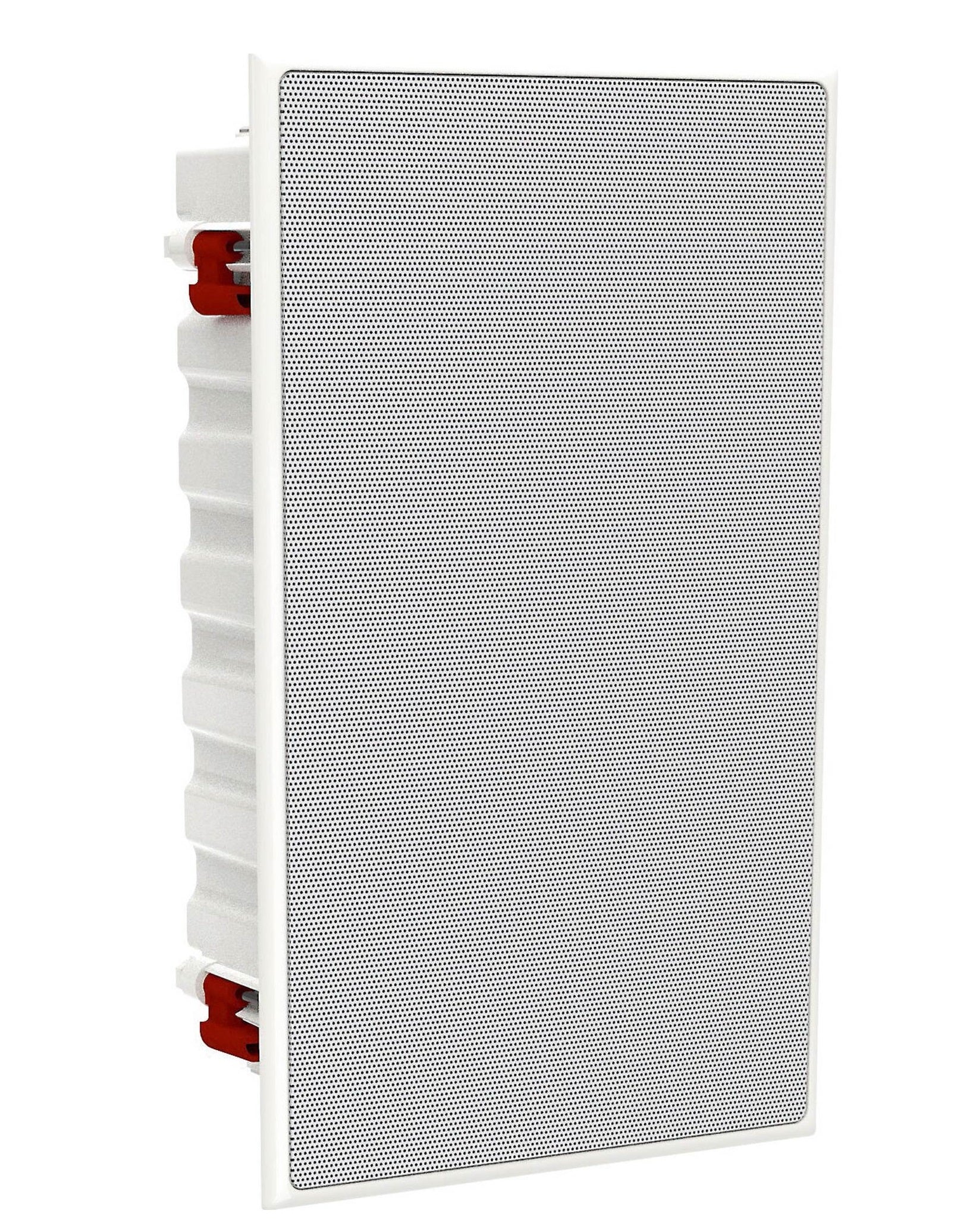

Grille: White
