Description

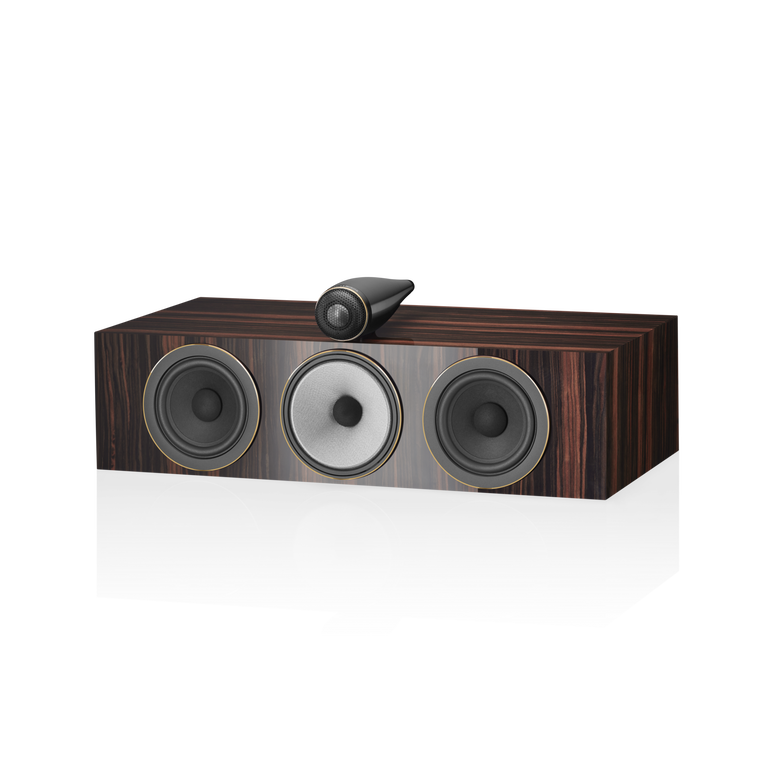

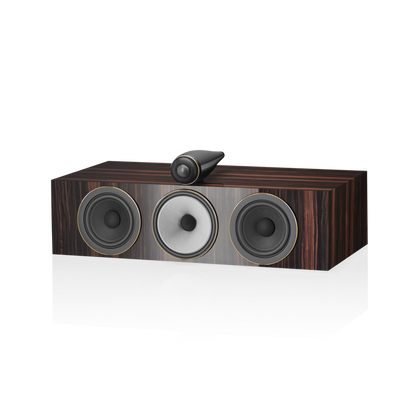

The HTM71 S3 Signature is a first-of-its-kind 700 Series Signature centre channel speaker, bringing even more clarity and detail to your favourite movies and music.
Crafted. Honed. Perfected.

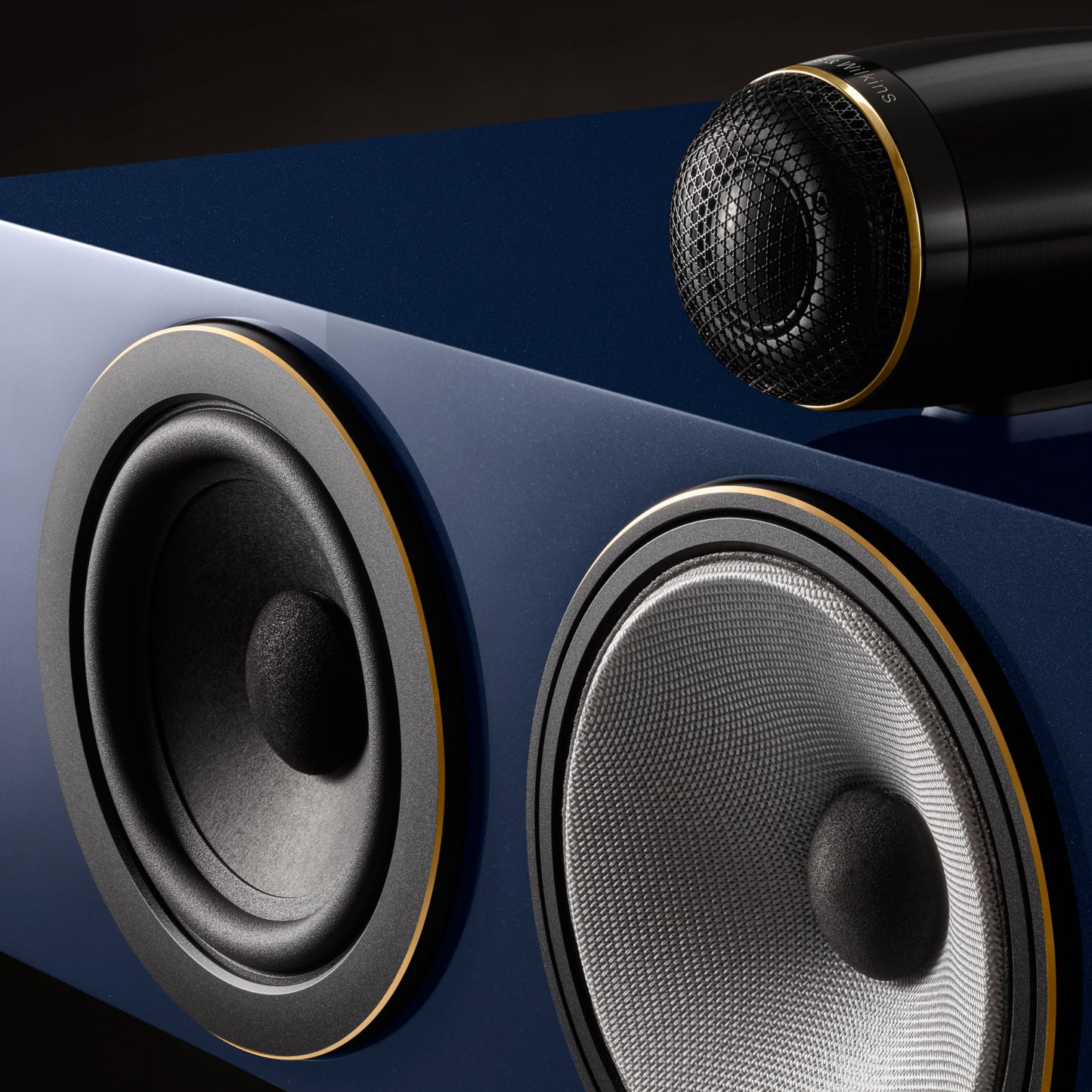

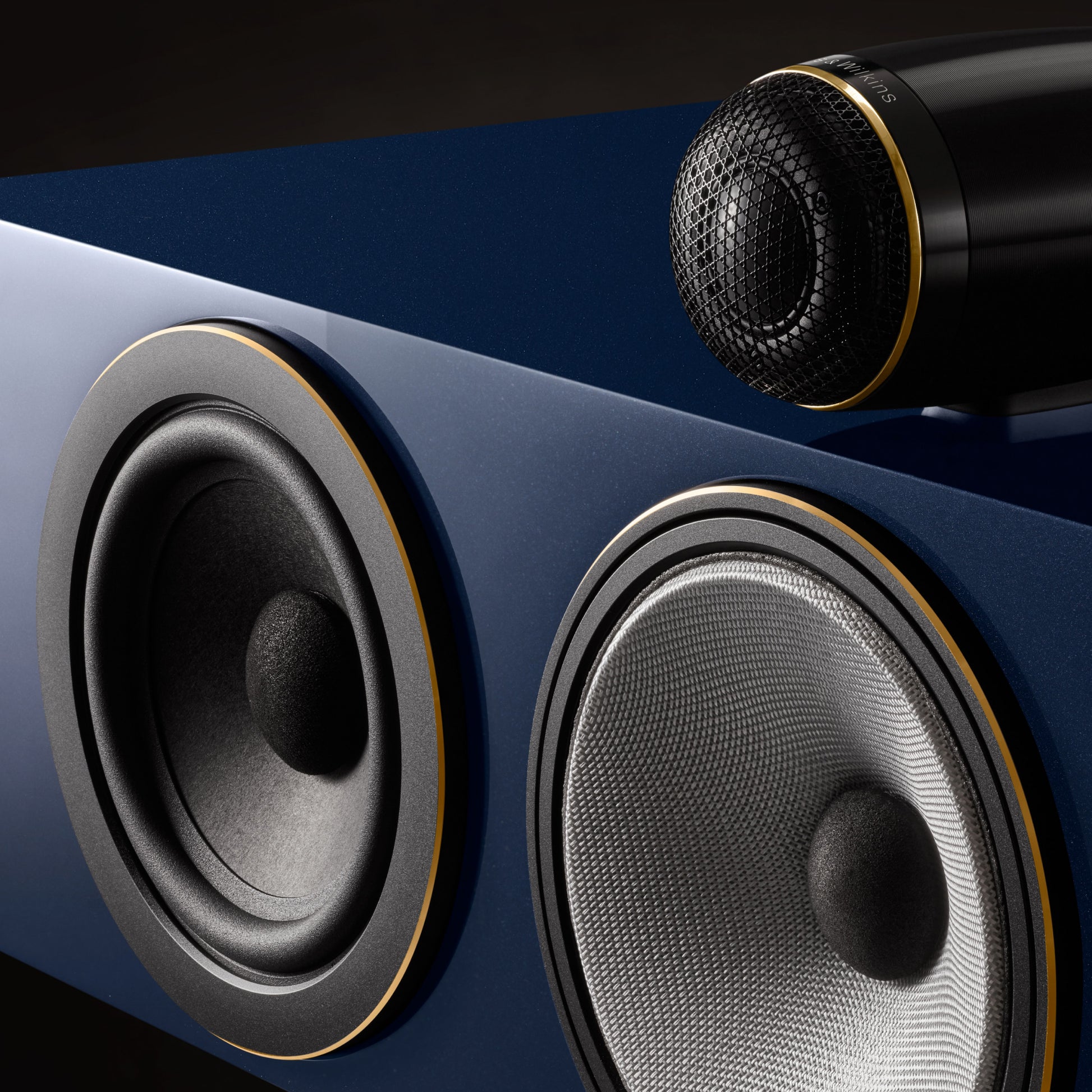

HTM71 S3 Signature features optimised technologies, such as our proprietary decoupled Continuum midrange drive unit and Tweeter-on-Top, plus upgraded bass motor systems, improved capacitors, revised speaker terminals, and a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
Technical Details
-
Drive units 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil Profile bass
-
Frequency range -6dB 45Hz - 33kHz
-
Frequency response50Hz - 28kHz ±3dB
-
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz
-
Nominal impedance 8Ω (minimum 3.1Ω)
-
Recommended amplifier power 30W - 200W into 8Ω on unclipped programme
-
Sensitivity 89dB spl (2.83Vrms, 1m)
-
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Aerofoil™ Profile bass cones
Flowport™
-
Description 3-way vented-box system
-
Max recommended cable impedance 0.1Ω
-
Net weight19.9kg
-
Dimensions Height: 165mm cabinet only
233mm including tweeter
Width: 628mm cabinet only
Depth: 318mm cabinet only
356mm including grille and terminals
