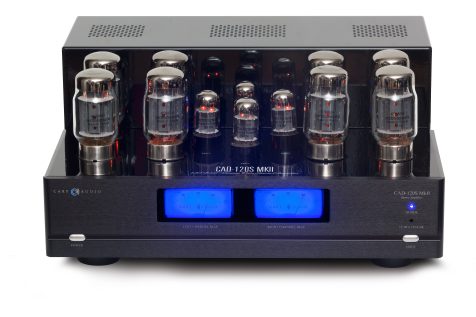

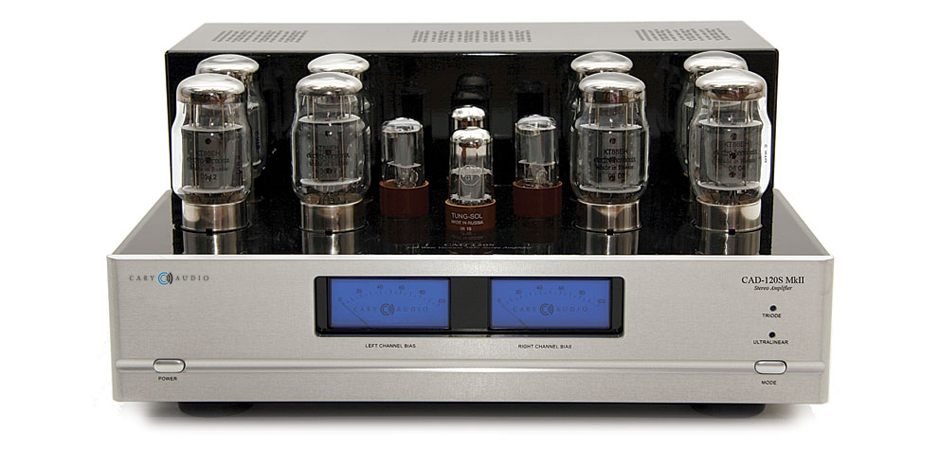

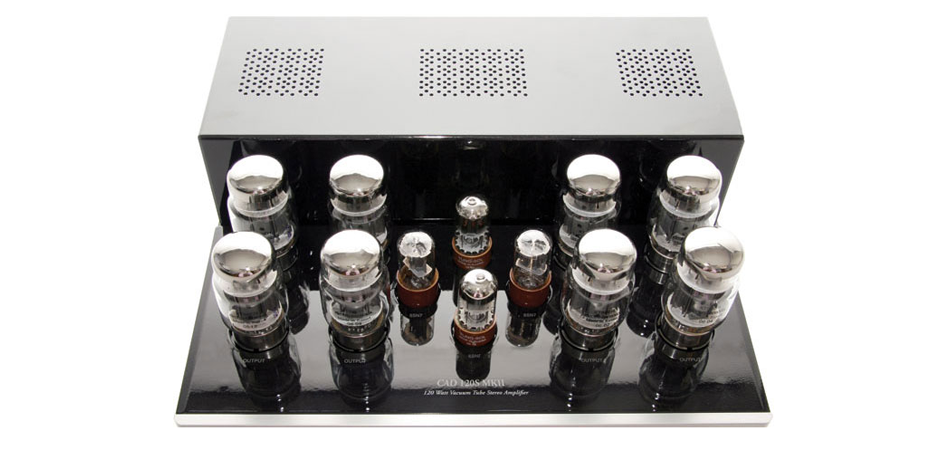

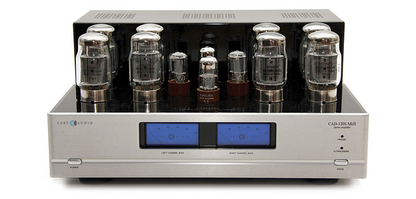

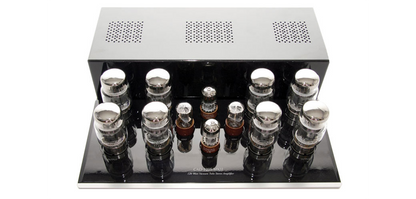

The CAD-120S MkII is a fully balanced stereo tube amplifier that combines power and finesse to create an unforgettable listening experience. Boasting a fan-favorite status, this amplifier offers the best of both worlds with the flexibility to operate in pure Class A at 60 watts per channel or switch to Class AB for an impressive 120 watts per channel. With the simple press of a button, you can tailor your sound to your preferences—whether you crave a richer, warmer presentation for late-night listening sessions or desire greater dynamics and bass punch for rocking out to your favorite tunes.
Versatile and adaptable, the CAD-120S MkII effortlessly complements any preamplifier, delivering a captivating sound that invites you to immerse yourself in the music. Sit back, relax, and let the CAD-120S MkII transport you into a world of pure audio bliss.
The following section describes the CAD-120S MkII basic specifications. The specifications are subject to change without notice or obligation.
| Circuit Type | Class AB, push-pull amplifier, Ultralinear or Triode mode operation with a front panel selector switch |
| Power Output | Ultralinear – 120 watts per channel Triode – 60 watts per channel |
| Inputs | XLR balanced or RCA single-ended |
| Noise and Hum | -80 dB |
| Input Impedance | 100K both RCA and Balanced |
| Frequency Response | 17 Hz – 25 KHz flat @ 1 watt |
| Tubes | 2 – 6SN7 input gain stage 2 – 6SN7 driver tubes 8 – KT 88 output tubes |
| Power Transformer | EI High voltage & bias supply EI laminate |
| Output Transformer(s) | Special bifilar wound 150 watt rating unit in each channel |
| Gain | 28 dB |
| Sensitivity | 1.24v |
| Power Supply Capacitors | 4 x 560µF |
| Speaker Posts | Cary gold plated copper, 5-way binding |
| AC Cord | 3 Conductor Shielded, Detachable |
| AC Power Requirements | 117 VAC @ 50/60 Hz 234 VAC @ 50/60 Hz |
| Warm-Up Time | 3 Minutes |
| Break-In Time | 100 hours of playing time |
| Finish | Anthracite black chassis with silver or black aluminum faceplate |
| Weight | 65 lbs |
| Dimensions | 8″ H x 17 ” W x 14″ D |
