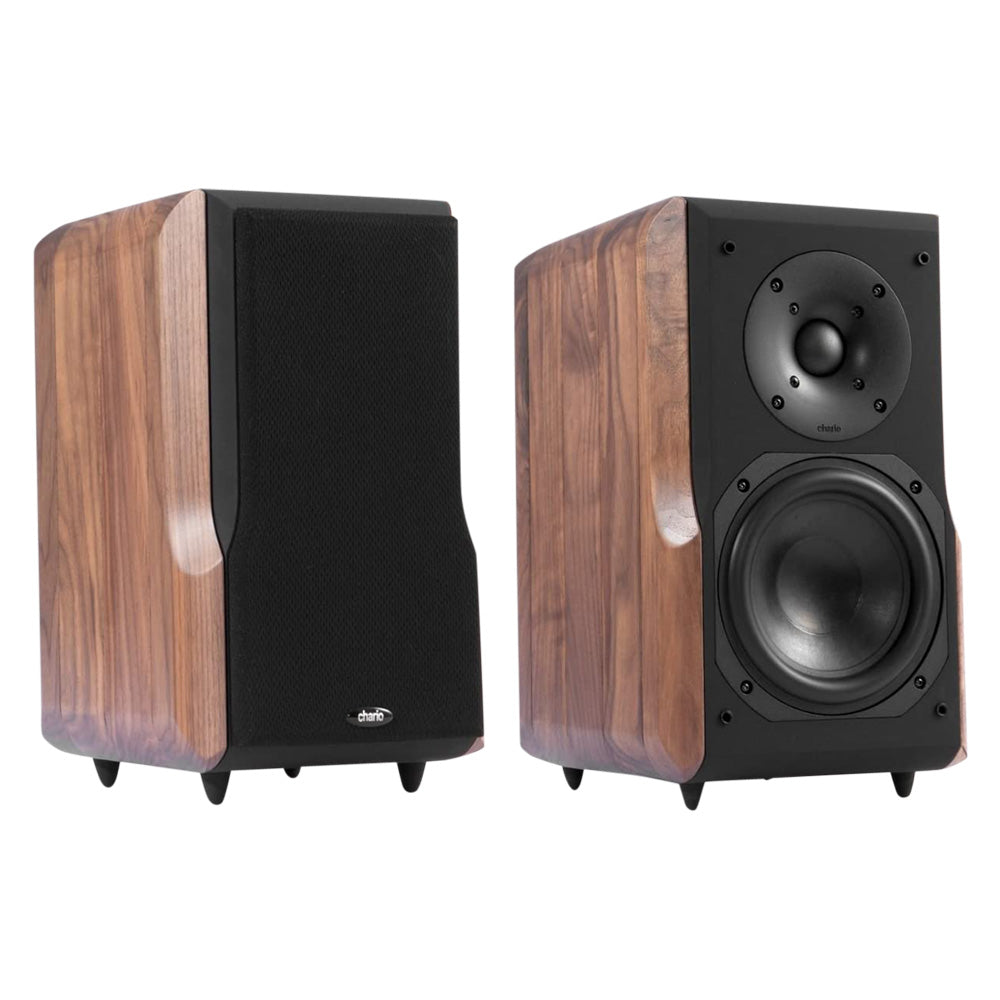

Chario Bookshelf Speakers Lynx II Walnut

CONSTELLATION LYNX

The smallest bookshelf of the series, but with a capacity of extension that reaches 67 Hz. With a load volume of 1000cm3, the Lynx will out perform many other larger and pricier speakers . The Lynx has consistently reviewed better than its competitor s in terms of sound staging, reproductive fidelity, and musicality.

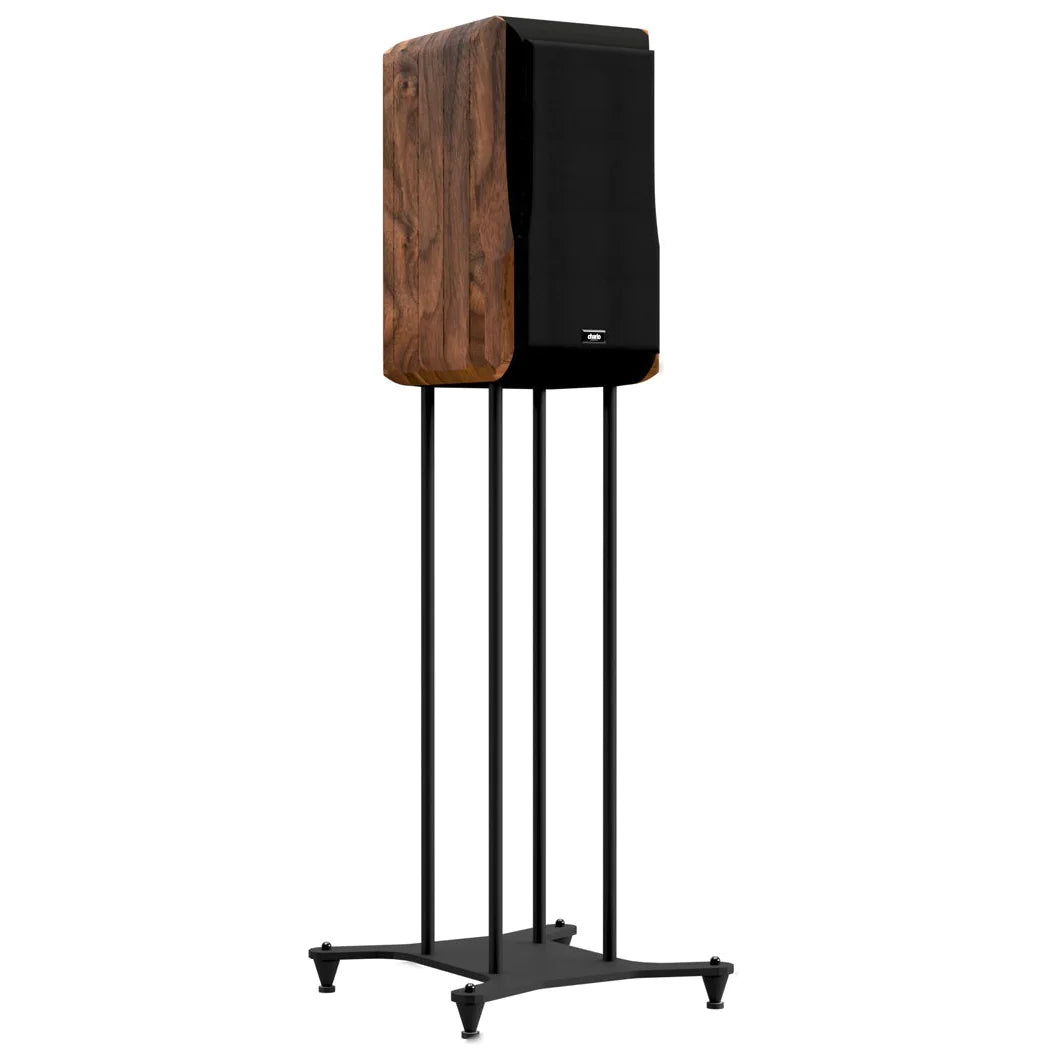

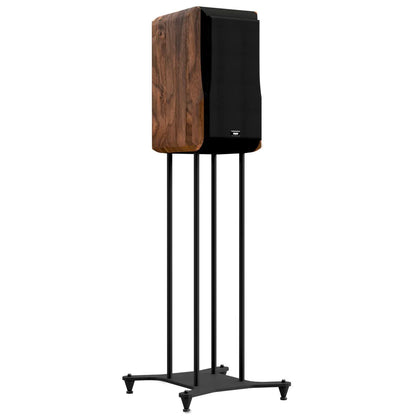

The dynamics surpass most limitations of the bookshelf standard, and is balanced and nuanced. The customized Lynx stands further dampen the vibrations of the cabinet structure, with a calibrated distance between stand and speaker ensuring the maximum efficiency of the bass reflex system.

ACOUSTIC / HOME

This loudspeaker is designed to produce excellent performance, even in normal domestic environments, where little to no acoustic consideration have been made.

The size of the ideal listening environment should not be less than than 6 square meters and not more than 14 square meters.

TECHNICAL DATA

Configuration: 2 way Bookshelf

Drivers: 1 Tweeter 38 mm Soft Dome, 1 Woofer 130 mm paper compound

Sensitivity: 87 dB SPL normalized to 1 m/2.83 Vrms/de-correlated L/R pink noise in
ITU-R BS 1116-1

Low Frequency Cut Off: 67 Hz @ -3 dB referred to C4 WETS

Crossover Frequency: 1500 Hz

Rated Impedance: Modulus 4 Ω (min 5.8) Argument ±36°

Low Frequency Load: Vented Subwoofer NRS 2π sr

Cabinet: High Density Fiberboard and Massive Wood

Listening Layout: A carpeted floor in front of the speakers is recommended

Cabinet Finish: Walnut

Size: 360 x 200 x 200 mm (H x W x D)

Weight: 10 Kg

Suggested Amplifier: Up to 60 W / 4 Ω Average Power

Note: Sizes and Weight referred to one speaker, Specs subject to change without notice, Average power calculated as V^2 rms/R, All quantities in SI Units
