Denon HEOS SuperLink Multi Room Pre Amplifier

Specifically designed with the custom installer in mind—and building off the success of the HEOS Link—the Denon HEOS Super Link provides coverage to all four HEOS zones in a single 1U (1.75” tall) chassis. With robust, third party control from popular manufacturers including Control4, Crestron, RTI, URC and ELAN, the HEOS Super Link is customizable within almost any professional-quality home audio environment.

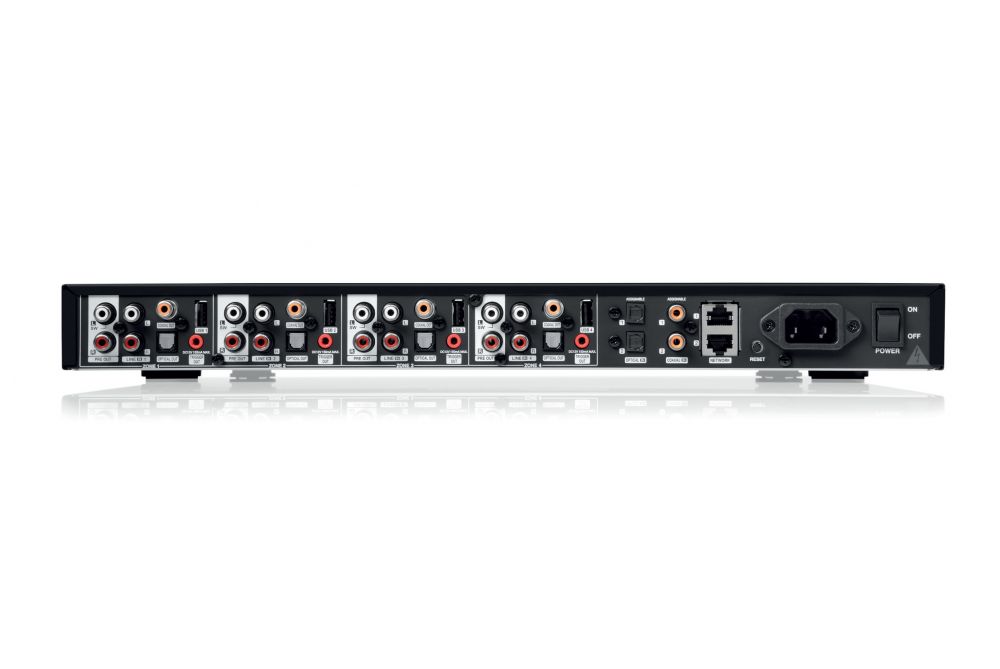

Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 4 optical digital inputs, 4 coaxial digital inputs and 4 analogue stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

Equipped to handle virtually any combination of speaker configurations, HEOS SuperLink features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices, and HEOS SuperLink is 3rd party control compatible.

HEOS Super Link comes with removable feet and attachable rack ears, allowing rack or shelf placement.

Once installed and connected, HEOS Super Link setup and configuration is fast and easy via our HEOS app (iOS, Android and Kindle Fire).

• WHOLE HOME MULTI-ZONE AUDIO (4 HEOS ZONES)
• PRE-AMP OUTPUTS FOR EACH ZONE, INCLUDING DEDICATED ANALOGUE, FIBER OPTIC AND COAXIAL OUTPUTS
• AMAZON ALEXA VOICE INTEGRATION
• DUAL RJ-45 ETHERNET LAN PORTS
• STEREO/MONO SELECTABLE OUTPUT
• ONLY 1RU HIGH; REMOVABLE RACK EARS INCLUDED
• 3RD PARTY CONTROLLABLE
• DOLBY DIGITAL/DOLBY DIGITAL+ DOWNMIXING TO STEREO

Dimensions

(H x W x D)

50 x 430 x 384 mm (without rack ears)
44 x 484 x 384 mm (with rack ears)
