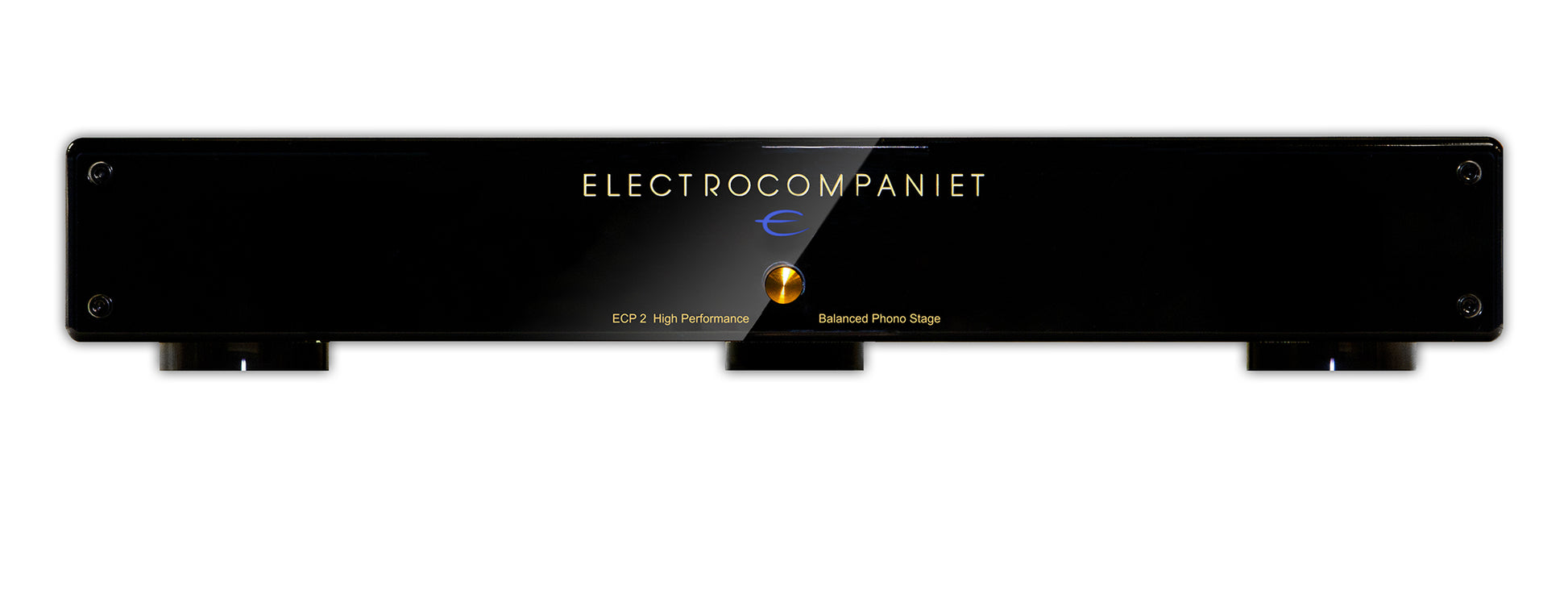

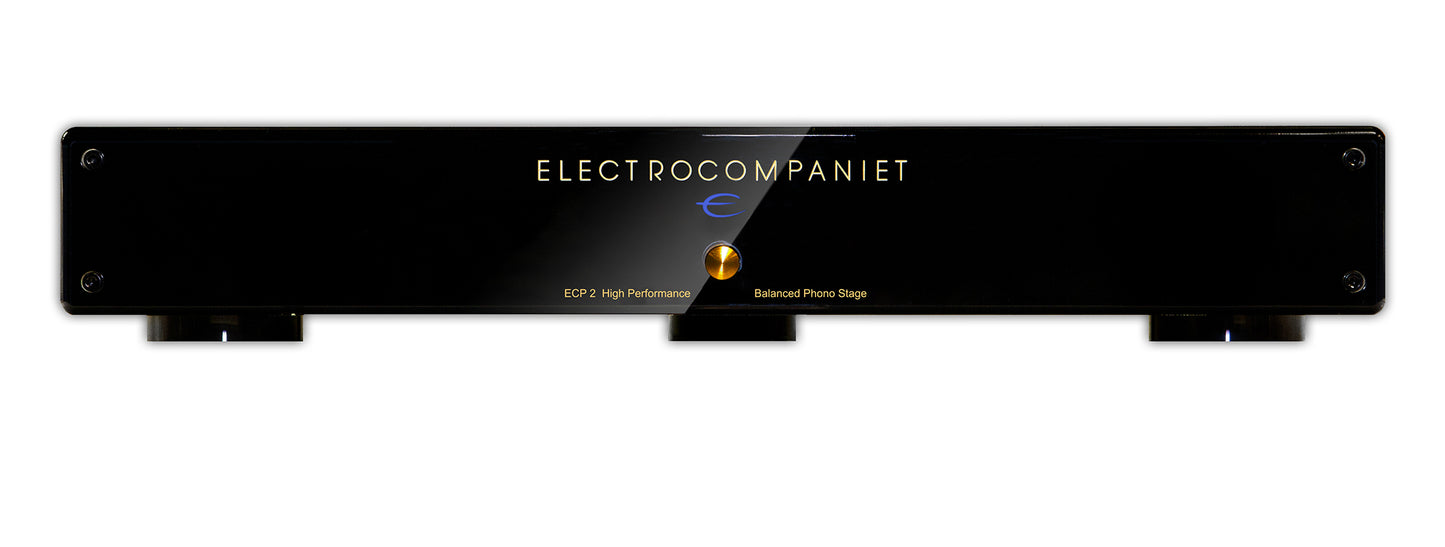

Electrocompaniet ECP 2 MK II Phono Preamplifier

Balanced Phono Stage Preamplifier The new Electrocompaniet ECP 2 Phono Preamplifier is designed according to guidelines seen in the phono preamplifier from Dynamic Precision. It incorporates state-of-the-art instrumentation operational amplifiers and like other Electrocompaniet products, it uses the highest quality of discrete components through the whole signal path, all DC coupled of course. The ECP 2 accommodates any imaginable pick-up and cable combination, thanks to it’s highly configurable input stage. User can select best suiting capacitive and resistive load configuration regarding to the pick-up cartridge used as source, no matter whether it is of an MM or MC type. Overall gain is also adjustable in 5 dB steps to accommodate different output levels from different pick-ups. The ECP 2 follows strictly the standard RIAA playback equalization curve, having also steep low frequency roll-off to filter out unwanted signals originating for example from playing back warped records. Phono section Gain @ 1 kHz RCA Adjustable 39,8 – 71,4 dB Gain @ 1 kHz XLR Adjustable 45,8 – 76,4 dB Resistance loading (RL) Adjustable 10 Ω – 47 kΩ Capacitive loading (CL) Adjustable 0 – 350 pF Maximum output level: 17.5 V rms (+ 25 dB V) Overload margin > 31 dB @ 1 kHz Output impedance 100 Ω single-ended, 200 Ω balanced Frequency response 20 – 20 kHz +/- 0.2 dB RIAA Correction Accuracy ± 0,1 dB Subsonic filter -3dB @ 11 Hz, 24 dB/octave Channel separation > 85 dB, 20 – 20 kHz THD + Noise < 0.003 % @ 1 kHz S/N-R 96 dB, 1 kHz, A-weighted, ref. 10 dB V output S/N-R 91 dB, 1 kHz, A-weighted, ref. 5 mV input S/N-R 67.4 dB, 1 kHz, A-weighted, ref. 500 μV input
