Audiophile Performance without an audiophile price
Inspired by our ultra-high-end electrostatic loudspeakers, Motion FX features dual Folded Motion tweeters in a wide dispersion configuration, powerful bass, and folded reflex port technology in a compact, affordable package. Key to Motion FX’s performance is the lightning fast response of the tweeter’s light-weight diaphragm combined with a large surface area (8-times that of a typical one-inch dome tweeter) which together achieve a smooth, refined sound with stunning dynamic range and jaw-dropping clarity
Application:
Home theater wide dispersion surround ideal for large, medium, and small rooms. Inspired by Martin Logan’s ultra-high-end electrostatic loudspeakers, the Motion Series was created by our dedicated in-house engineering team to provide stunningly compelling sound for your ultimate-performance audio system.
Key Features:

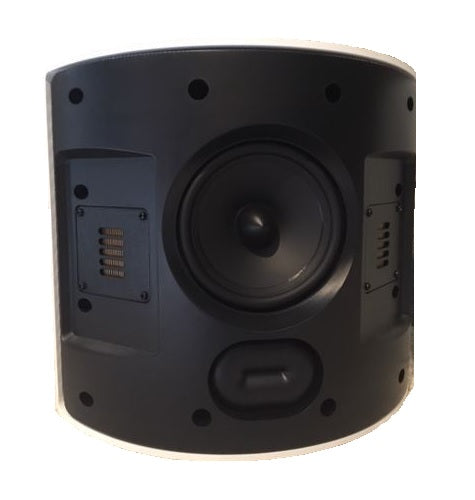

- Dual Folded Motion™ tweeters
- Wide dispersion
- 5.25-inch paper cone woofer doped for stability and damping. Rigid dust cap
- Folded bass reflex port
- Precision Vojtko™ crossover with custom air core coil and low DCR steel

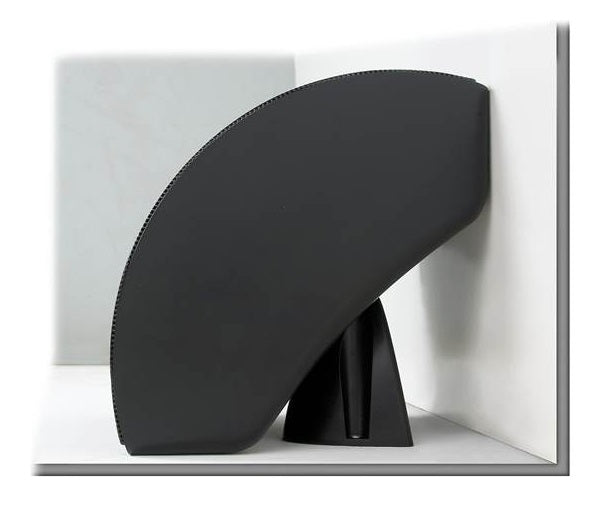

laminate inductors; polyester film and low DF electrolytic capacitors - On-wall installation in corner, flat on wall, or angled on wall
- Bookshelf installation

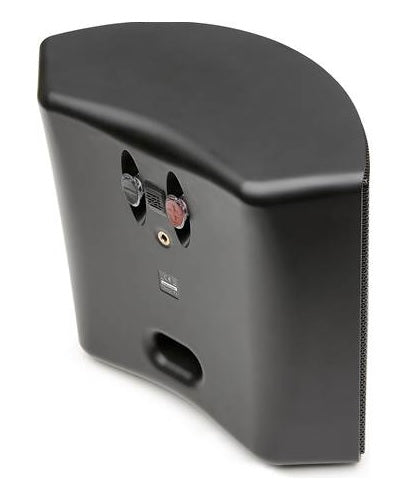

- Convenient push-style binding posts easily adapt to accept banana plugs.
Specifications:
Specifications are subject to change without notice
Frequency Response |
70–25,000 Hz ±3dB |
Recommended Amplifier Power |
20—160 watts per channel |
Horizontal Dispersion |
160° |
Vertical Dispersion |
80° |
Sensitivity |
91 dB/2.83 volts/meter |
Impedance |
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
Crossover Frequency |
4500 Hz |
High Frequency Transducer |
Two 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
Low Frequency Transducer |
5.25" (13.3cm) paper cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port. |
Components |
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
Inputs |
Push style with banana jacks |
Weight |
4.4 kg |
Dimensions |
282mm x 305mm x 152mm |
