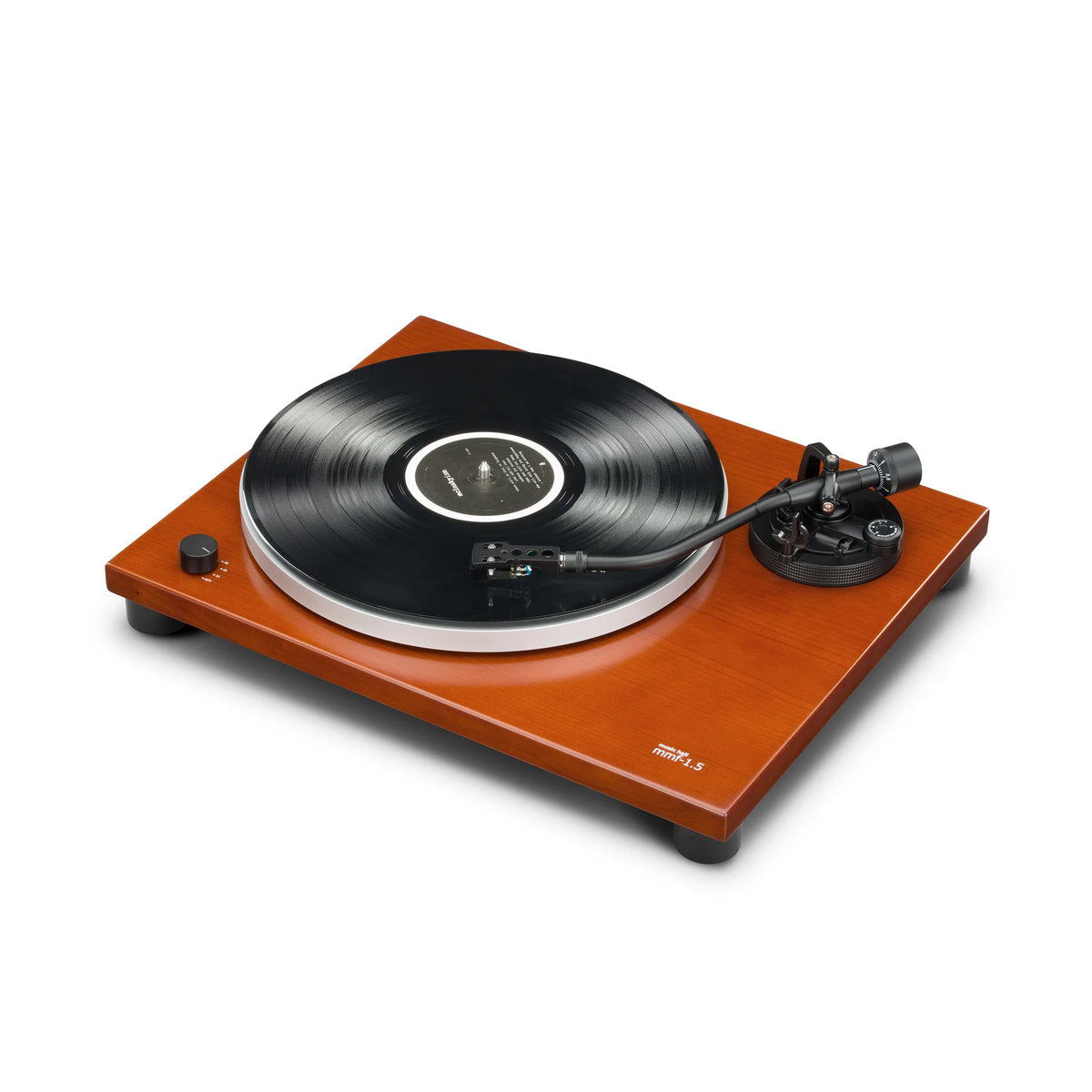

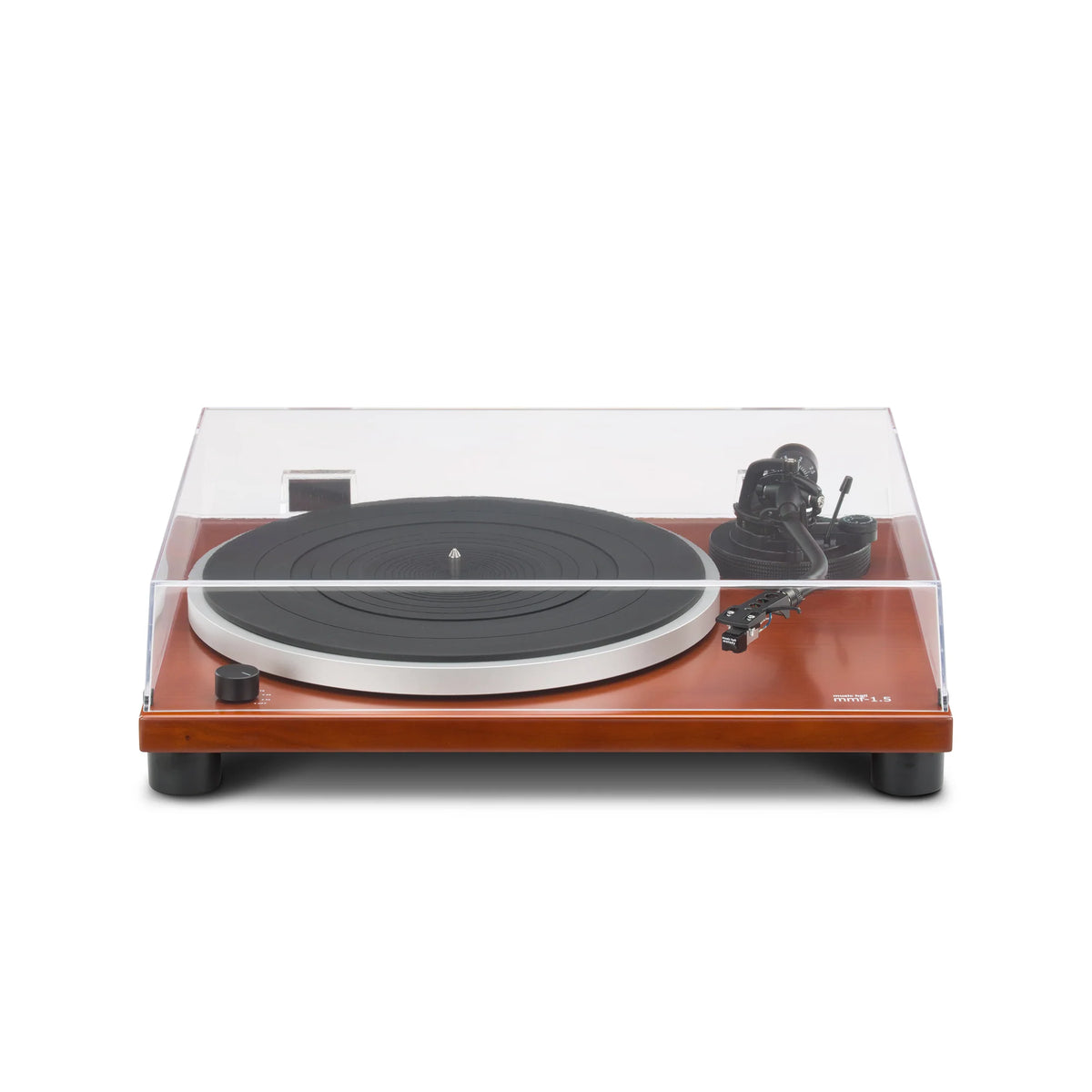

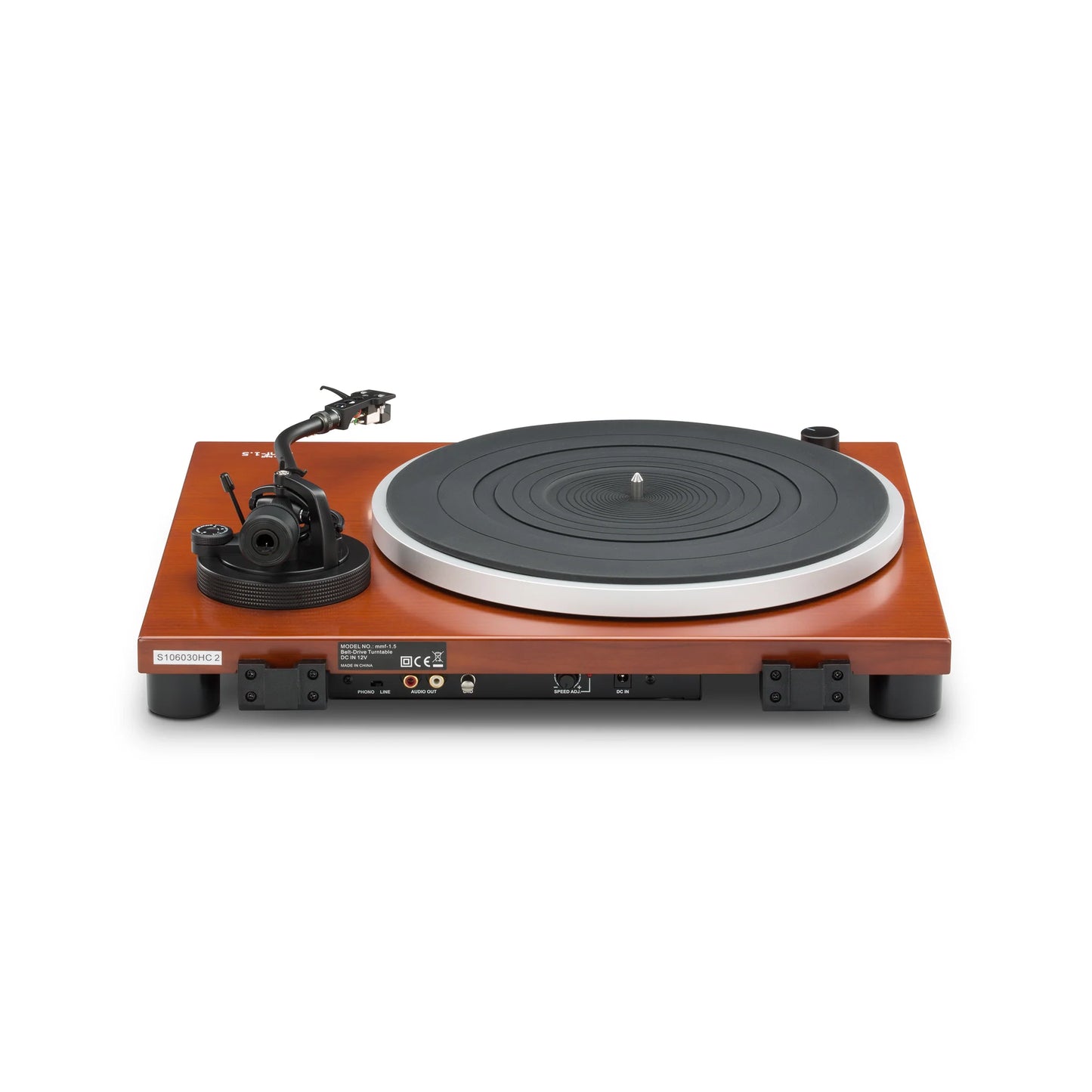

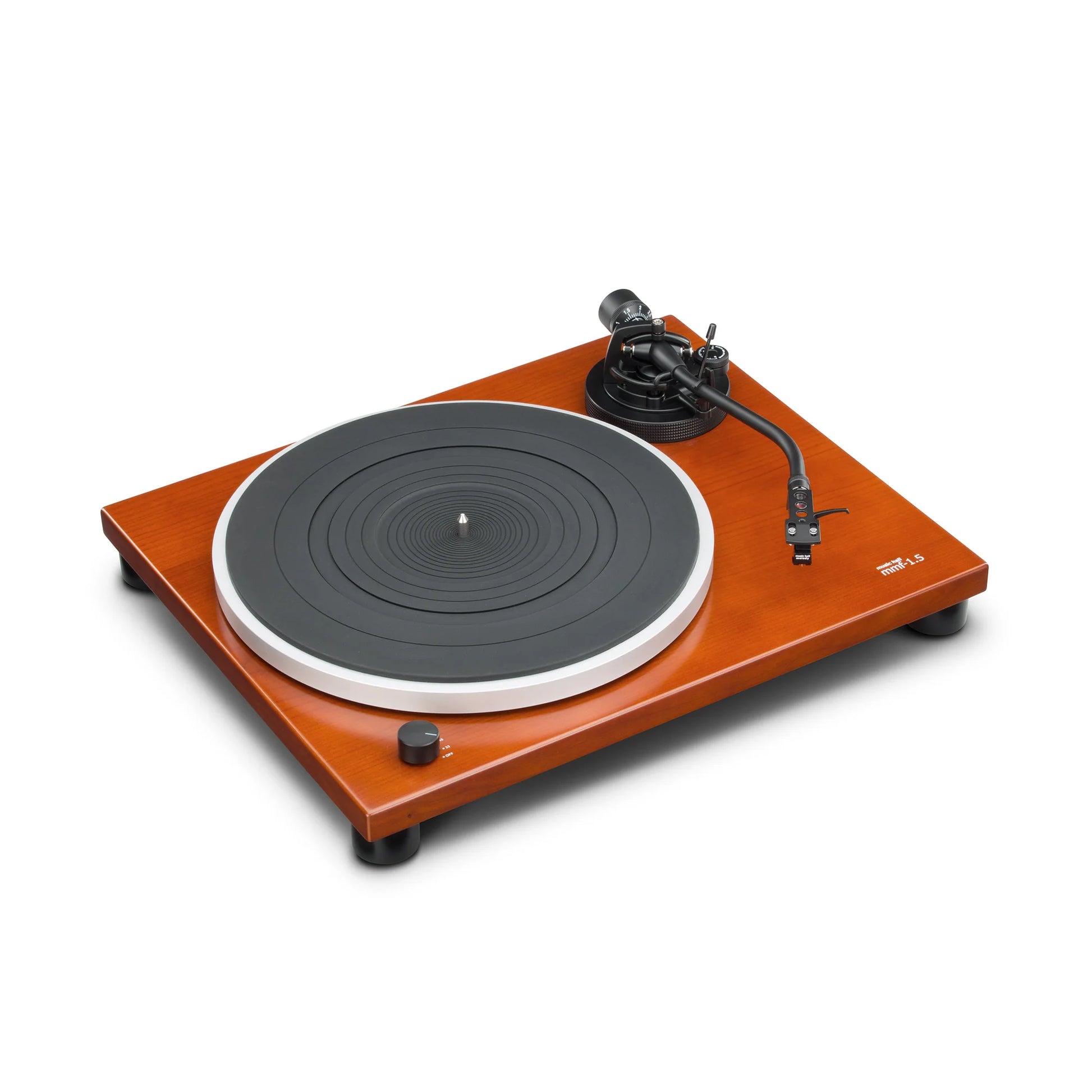

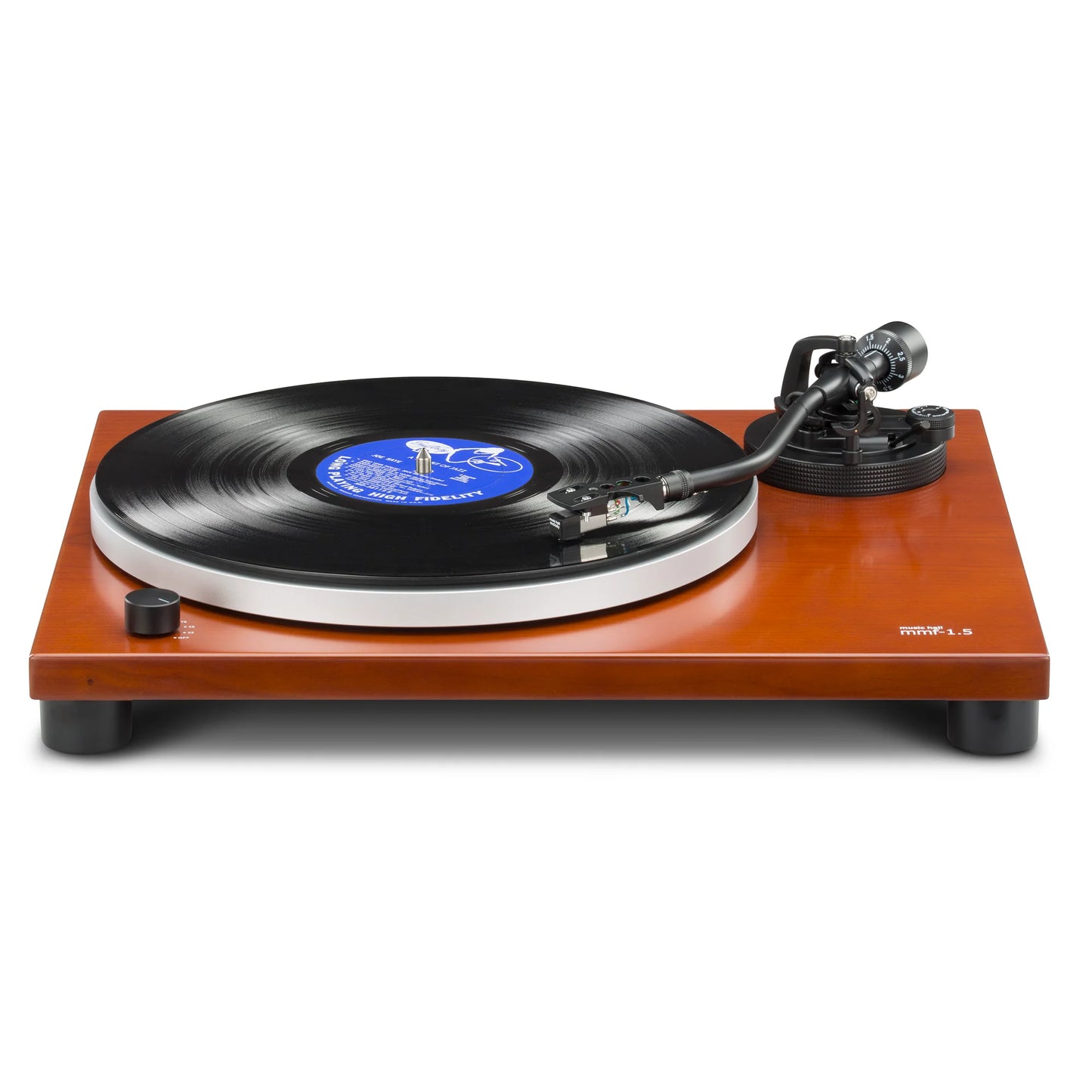

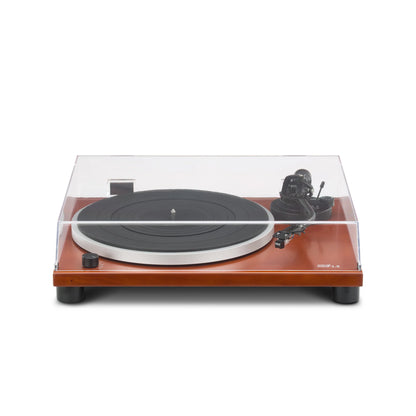

Music Hall MMF 1.5 Turntable w/Built in Phono Pre Amp

Description

The Music Hall MMF-1.5 turntable is a beautifully refined piece that sets your world to groove and your feet to dance. Its superior S-shaped alloy tonearm, top-quality Music Hall Melody cartridge, and 3-speed belt drive design deliver exceptional sound quality, while the built-in phono preamp allows you to connect directly to your current system. The included hinged dust cover keeps your MMF-1.5 protected when not in use. With a built-in speed control circuit, the MMF-1.5 ensures the accuracy of its 3 speeds, providing you with an immersive listening experience from start to finish.

Product Highlights:

• Gorgeous real cherry wood veneer
• Built-in bypassable phono pre-amplifier
• 9" S-shaped aluminum tonearm with removable headshell for easy cartridge changing
• Low noise three-speed belt-drive motor provides 33⅓, 45, and 78 rpm
• Properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge
• Adjustable electronic speed control
• Special vibration-damping feet

Turntable

Type: 3-speed full manual
Motor: DC motor
Driving Method: Belt drive
Platter: 305mm dia. aluminum die-cast
Speeds: 33 1/3, 45, and 78rpm
Wow & Flutter: less than 0.1% WTD at 3KHz RMS(CD-4005)
Limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
S/N Ratio: More than 65dB (DIN-B) (SS-4242)
Limit: More than 62dB (DIN-B) (SS-4242
Speed Tolerance: 3000Hz +/-1%(CD-4005)
Power Supply: DC12V，2.0A
Universal Power Supply
Consumption: 4W
Dimensions (WxDxH): 17.1" x 14.5" x 5" (435x367x127mm)
Weight: 12lbs. (5.4Kg)

Cartridge
Included Cartridge: Music Hall Melody
Output Voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec
Channel Separation: measurement point 1KHz over 18dB
Channel Balance: 25 dB or less at 1KHz
Frequency Response: measurement point 10KHz / 1KHz 0 +/- 3dB
Tracking Force: 2.0 +/- 0.5 grams
Cartridge Type: Moving Magnet
Stylus: Diamond
Channel Separation: More than 15 dB at 1KHz (CD-4005)
Channel Balance: Within 2.5 dB at 1KHz (CD-4005)
Phono Output Level: 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
Line Output: 90-216 mV at 1KHz 5cm/sec (CD-4005)
RIAA: 20Hz~20KHz: +1/-3 dB

Tonearm
Type: static balanced S-shaped
Effective Arm Length: 230mm
Overhang: 15mm
Offset Angle: 22 degrees
Tracking Error Angle: 3 degrees or less
Rotation Movability: (1-rotation 4g)
Applicable Cartridge Weight: 5~8.5g (including headshell 15~18.5g)
Anti-Skating Adjustment Range: 0~3g
Arm Lifter: Oil damper type
Height Of Stylus: 8~10.5mm
Lifter Descent Time: 1.5~3 sec (stylus pressure: 2g)
Horizontal Sensitivity: less than 0.2g
Vertical Sensitivity: less than 0.2g
