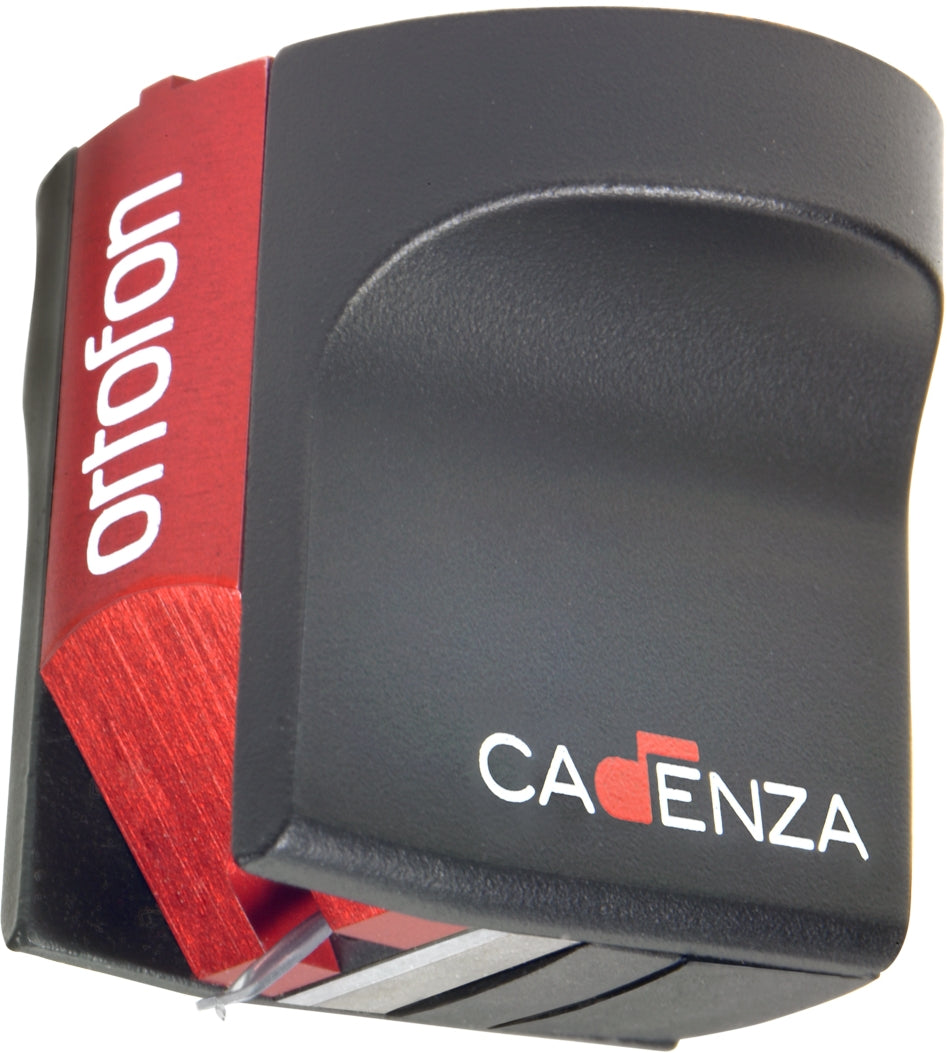

Ortofon Cadenza Red Moving Coil Cartridge

Description

The sound picture of Cadenza Red is relaxed, homogeneous and moderately dynamic and have great space and depth in the stereo image.

The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.

The coils are made from 6NX (99.9999 %) pure silver wire.

An improved winding process on the armature allows a better channel balance.

Output voltage at 1 kHz 5 cm/sec - 0,45 mV
Channel balance - < 1,5 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at -3 dB - 20 Hz - 50 kHz
Frequency response 20 Hz - 20 kHz - +3/-1
Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
Compliance, dynamic, lateral - 12 μm/mN
Stylus type - Nude Fine Line on Alu cantilever
Stylus tip radius - r/R 8/40
Tracking force range - 2,2-2,7 g (22-27 mN)
Tracking force recommended - 2,5 g (25 mN)
*) Typical value
