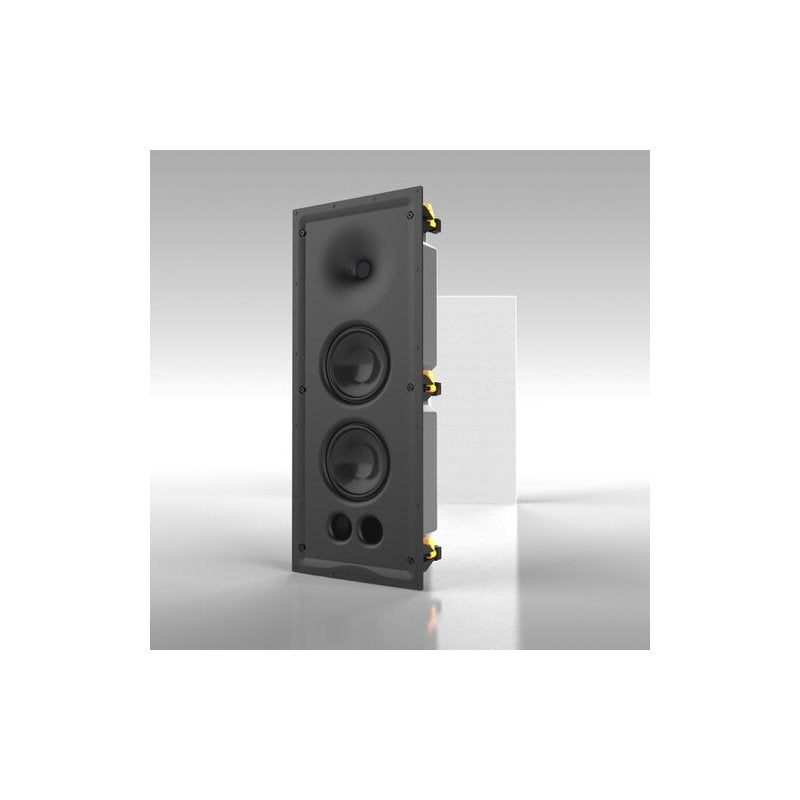

Theory Audio Design IW25 In-wall speaker (each)

Theory Audio Design IW25 In-wall speaker (each)

In stock

Regular price $2,599.00
Sale price $2,599.00 Regular price
-Liquid error (snippets/price line 111): divided by 0% off
Limited Time Offer

Not available online. Contact us for purchase options.

Customer Care & Support

In Store pickup

Free Delivery above $500 in AU

View full details

Description

IW25 High-Output In-Wall Loudspeaker System


The iw25 fully-enclosed in-wall loudspeaker is the remarkable sb25 model, with a mechanical enclosure to adapt it to in-wall mounting. All of the sb25’s performance attributes remain: robust, wide-bandwidth and dynamic sound with uncanny accuracy and naturalness. The ability of the iw25 to fill large spaces with full-bodied, thrilling sound is shocking. Finally big sound in background and foreground applications does not have ugly, or even visible!

The iw25 in-wall loudspeaker can be operated at low-Z (4-ohms impedance) or by employing its included internal power transformer at hi-Z (70V/100V) at 60W, 30W, 15W and 7.5W.

Like its sister product, the sb25, the iw25 discreet in-wall loudspeaker will have you rethinking how you deploy audio in your premium system designs.

Description: High-Output Weather Resistant In-Wall Loudspeaker
Operation: Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
4-ohms or 70V/100V Operation, Selectable
DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers: 2 x 5" Theory Carbon Fiber Low Frequency Drivers
1 x 1.4" Theory Advanced Polymer High Frequency Compression Driver
Enclosure: Molded ABS Frame with Powder Coated Steel Integral Back Can
Terminals: Euroblock Connector with Parallel Output
Outdoor Capability: Indoor and Outdoor Use (when used with matching iw25 all-weather grille)
Mounting Points: 6 Retractable Dog Ears
Bandwidth: 51Hz -23kHz, -6db;
46Hz - 24kHz, -10dB
Coverage: 125 Degrees Conical (-6dB @ 10kHz)
160 Degrees Conical (-12dB @ 9.8kHz)
Sensitivity: 94dB-108dB SPL/2.83V/1m
Power Handling: 200W (AES);
400W (Continuous);
800W (Peak)
Minimum recommended Power: 50W rms
Maximum Output: 117dB SPL / 1m (based on AES power rating)
123dB SPL / 1m (peak)
Nominal Impedance: 4-ohms; Hi-Z (70V/100V) Selectable
Transformer Taps: 60W, 30W, 15W, (7.5W, 70V)
Colors: White Perforated Metal Grille
Dimensions: Speaker: 23.5" H x 9.63" W x 3.4" D (597mm H x 246mm W x 86mm W)
Grille: 23.63” H x 9.5” W (600mm H x 241mm W)
Cutout: 8.75” W x 22.625” H (222mm W x 575mm H)
Total Installed Depth: 3.4" (86mm)
Maximum Wall Thickness: 1.5" (38mm)
Net Weight: 15 lbs. (6.8 kg)
Included Accessories: White Rectangular Indoor Grille
Cutout Template
Optional Accessories: White Paintable Rectangular Indoor Grille
